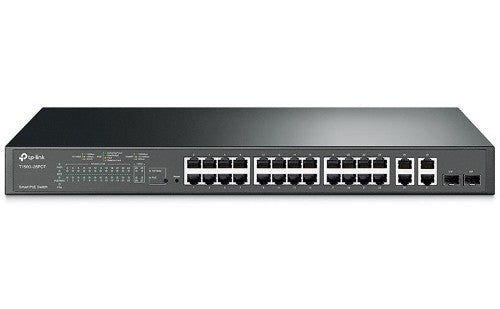

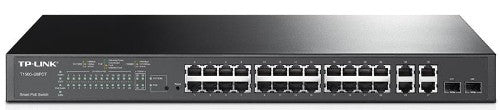

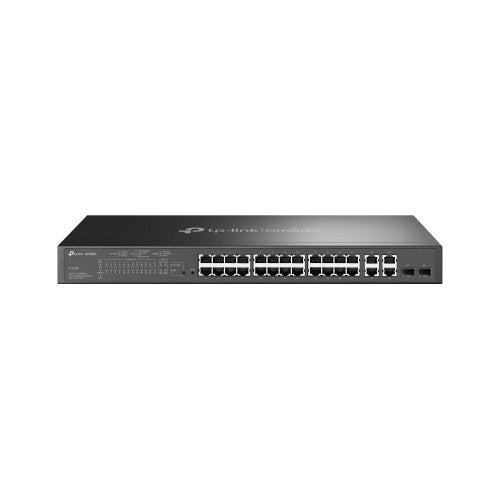

TP-Link Omada SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

24× 10/100 Mbps RJ45, 2× 10/100/1000Mbps RJ45, 2× Gigabit Combo RJ45/SFP, 12.8 Gbps, 8K MAC, 9 KB Jumbo, 440×180×44

Key Features

• 24× 10/100 Mbps 802.3af/at PoE+ ports with up to 30 W PoE output per port
• 2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP ports
• 250 W total PoE budget
• Centralized cloud management via the web or the Omada app
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Durable metal casing and rackmountable design

Description

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
ARP inspection	Yes
Switch layer	L2
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Configuring Location Settings (CLI)	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	4
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat5, Cat5e
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number of VLANs	512
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
MAC address table	8000 entries
Switching capacity	12.8 Gbit/s
Throughput	9.5 Mpps
Number of queues	4
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Number of VLANs	512
Security
SSH/SSL support	Yes
Security algorithms	SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
IGMP snooping	Yes
Access Control List (ACL)	Yes
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v1/v2c/v3, RMON, SNTP, TFTP
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
Number of fans	2 fan(s)
Certification	CE, FCC, RoHS
Performance
Firmware upgradeable	Yes
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Packet buffer memory	4.1 MB
Power
Power consumption (max)	291.6 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	250 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	995.09 BTU/h
Virtual LAN features
Number of VLANs	512
VLAN support	Yes
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Certificates
Certification	CE, FCC, RoHS
System requirements
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
