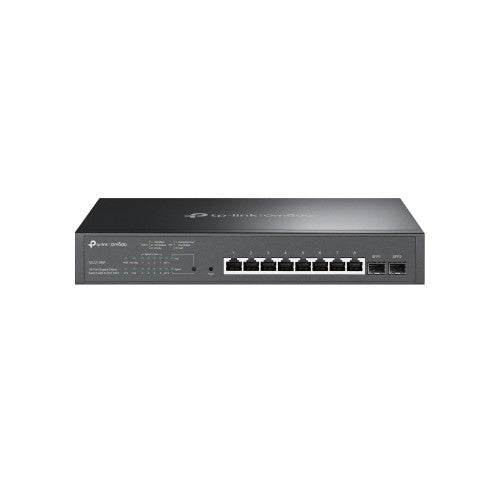

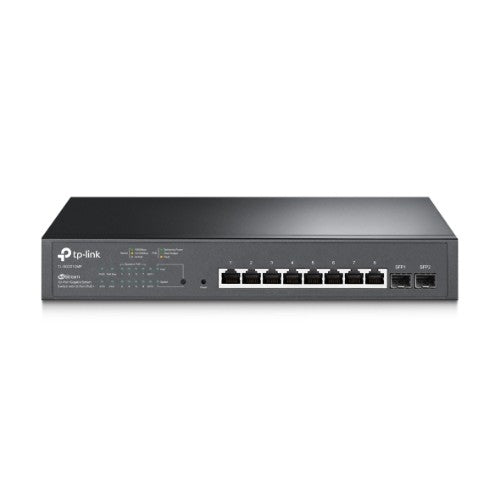

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

8× 10/100/1000 Mbps RJ45 PoE+, 2× 100/1000 Mbps SFP, 20 Gbps, 8K MAC, 9 KB Jumbo, 294×180×44 mm

Key Features

• 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
• 150 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Durable metal casing and desktop/rack mounting design

Description

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
ARP inspection	Yes
Switch layer	L2/L2+
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4000
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
Optical fiber
Fiber ethernet cabling technology	100BASE-FX, 1000BASE-X
Data transmission
Jumbo frames	9000
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	14.9 Mpps
Number of VLANs	4000
Security
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
Security algorithms	EAP-LEAP, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
IGMP snooping	Yes
Access Control List (ACL)	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
Number of fans	1 fan(s)
Certification	CE, FCC, RoHS
Power
Power consumption (max)	173.9 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	150 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	594.46 BTU/h
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Performance
Packet buffer memory	4.1 MB
Certificates
Certification	CE, FCC, RoHS
