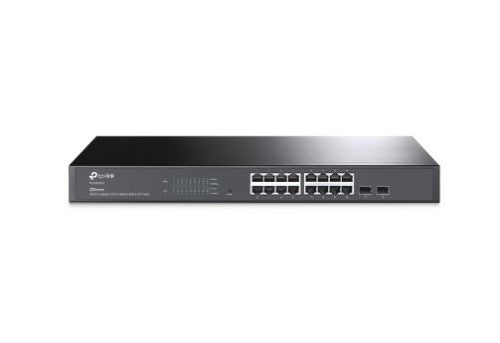

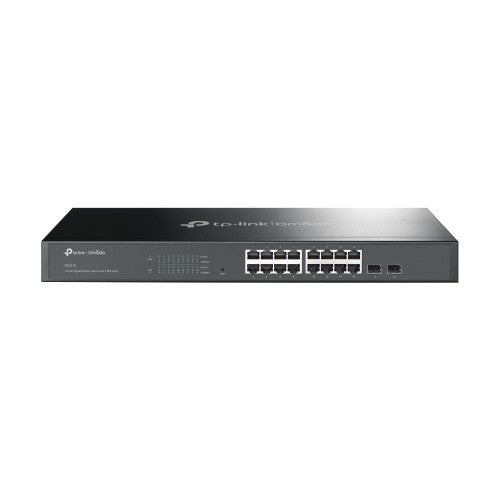

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

16× 10/100/1000 Mbps RJ45, 2× Gigabit SFP Slots, 36 Gbps, 8K MAC, 9KB Jumbo, 440 × 180 × 44 mm

Key Features

• 16× Gigabit RJ45 ports and 2× Gigabit SFP slots
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and rackmountable design

Description

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
ARP inspection	Yes
Switch layer	L2/L2+
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	16
Network
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Number of VLANs	4000
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
10G support	No
Virtual LAN features	Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Data transmission
Jumbo frames	9000
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Store-and-forward	Yes
Number of static routes	32
Number of IP interfaces	16
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Static route	Yes
Forwarding rate	26.8 Mpps
Number of VLANs	4000
Multicast Listener Discovery (MLD) snooping	Yes
Security
Loop protection	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Certification	CE, FCC, RoHS
Performance
Fanless	Yes
Packet buffer memory	4.1 MB
Power
Power consumption (max)	12.3 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	41.97 BTU/h
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Quick start guide	Yes
Cables included	AC, LAN (RJ-45)
Certificates
Certification	CE, FCC, RoHS
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Packaging data
Quick start guide	Yes
Cables included	AC, LAN (RJ-45)
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
