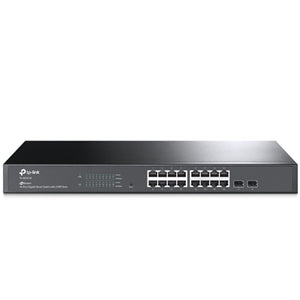

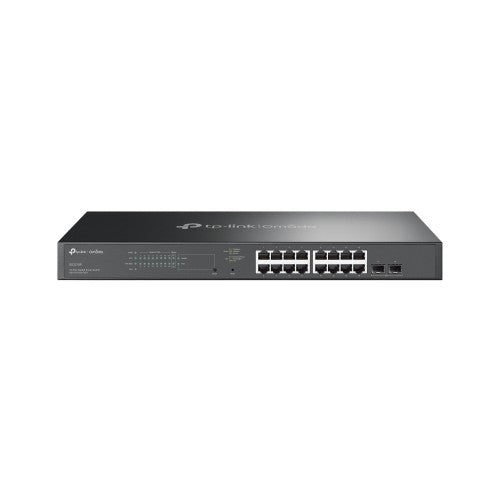

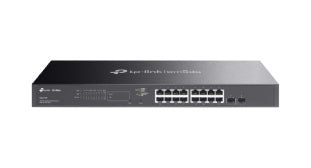

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

16× 10/100/1000 Mbps PoE+ RJ45, 2× Gigabit SFP Slots, 36 Gbps, 8K MAC, 9 KB Jumbo, 440 × 180 × 44 mm

Key Features

• 16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots
• 150 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Durable metal casing and rackmountable design

Description

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The
switches can be managed by Omada SDN Controller, which provides professional and reliable one-step
solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing
provide cost-effective networking solutions for small and medium-sized businesses without sacrificing
enhanced usability and strong performance.

Specifications

Management features
ARP inspection	Yes
Switch layer	L2/L2+
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Policy-based routing	Yes
Data transmission
Jumbo frames	9
MAC address table	8000 entries
Switching capacity	26.78 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	26.78 Mpps
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication
Static port security	Yes
SSH/SSL support	Yes
MAC address filtering	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client, DHCP relay, DHCP snooping
Multicast features
Multicast support	Yes
Multicast features	Multicast forwarding
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Certification	CE, FCC, RoHS
Power
Power consumption (max)	181.4 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	150 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	619.06 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
User guide	Yes
Cables included	LAN (RJ-45)
Packaging data
Package type	Box
User guide	Yes
Cables included	LAN (RJ-45)
Performance
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
Certificates
Certification	CE, FCC, RoHS
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
