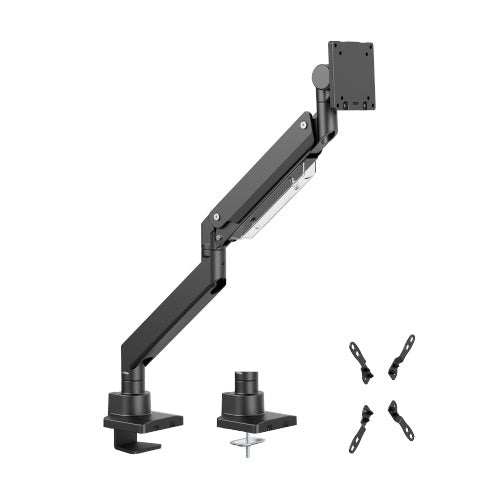

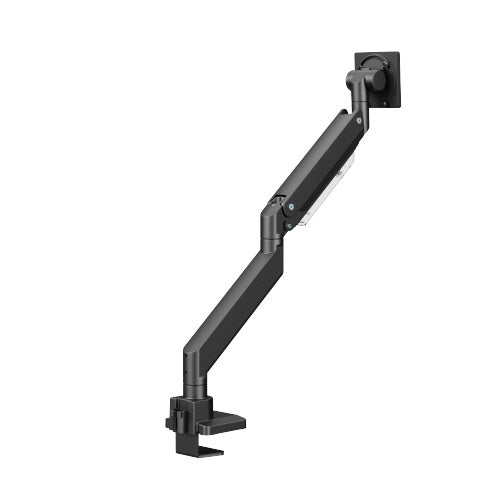

Brateck LDT80-C012 monitor mount / stand 144.8 cm (57") Black Desk

SUPER HEAVY-DUTY GAS SPRING MONITOR ARM For most 17"~57" Monitors, Matte Black (New)

Key Features

• Detachable VESA Plate Design: enables easy installation
• Optimized Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens
• Built-in Spring Tension Mechanism: for perfect weight adjustments
• Installs from Top Side: installs entirely from above the desk surface
• Include VESA Adapters: fit monitors with different VESA patterns

Description

Brateck LDT80-C012 SUPER HEAVY-DUTY GAS SPRING MONITOR ARM For most 17'~57' Monitors, Matte Black

FEATURES
●Detachable VESA Plate Design: enables easy installation
●Optimized Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens
●Built-in Spring Tension Mechanism: for perfect weight adjustments
●Installs from Top Side: installs entirely from above the desk surface
●Include VESA Adapters: fit monitors with different VESA patterns

SPECIFICATIONS
Product Category: Gas Spring Monitor Arm
Rank: Premium
Material: Steel,Aluminum,Plastic
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 120x580x730mm (4.7'x22.8'x28.7')
Fit Screen Size: 17'-57'
Fit Curved Monitor: Yes
Screen Quantity: 1
Weight Capacity (per screen): 2~27kg (4.4lbs~59.4lbs)
Weight Capacity for Curved Screen (per screen): 2~22kg (4.4lbs~48.4lbs)
VESA Compatible: 75x75,100x100,200x100,200x200,100x200

Tilt Range: +60°~-20°
Swivel Range: +90°~-90°
Screen Rotation: +90°~-90°
Arm Full Extension: 526mm (20.7')
Installation: Clamp,Grommet
Suggested Desktop Thickness: Clamp：10~45mm Grommet：10~40mm (Clamp：0.39'~1.8' Grommet：0.39'~1.6')
Quick Release VESA Plate: Yes
USB Port: No
Multi-Media Port: No
Cable Management: Yes
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag

Specifications

Mounting
Maximum weight capacity (per display)	27 kg
Desk thickness (min)	1 cm
Minimum screen size	43.2 cm (17")
Maximum weight capacity	27 kg
Maximum screen size	144.8 cm (57")
Panel mounting interface	75 x 75,100 x 100,100 x 200,200 x 100,200 x 200
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Mounting	Clamp/Grommet
Extension arm (max)	52.6 cm
Clamp mount desk thickness (max)	4.5 cm
Grommet mount desk thickness (max)	4 cm
Maximum weight capacity (per curved/ultra-wide display)	22 kg
Ergonomics
Cable management	Yes
Swivel angle range	-90 - 90°
Tilt angle range	-20 - 60°
Angle of rotation	90°
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Aluminium, Plastic, Steel
Technical details
Cable management	Yes
Weight & dimensions
Width	120 mm
Depth	580 mm
Height	730 mm
Weight	2.68 kg
Other features
Mounting type	Desk
Mounting	Clamp/Grommet
