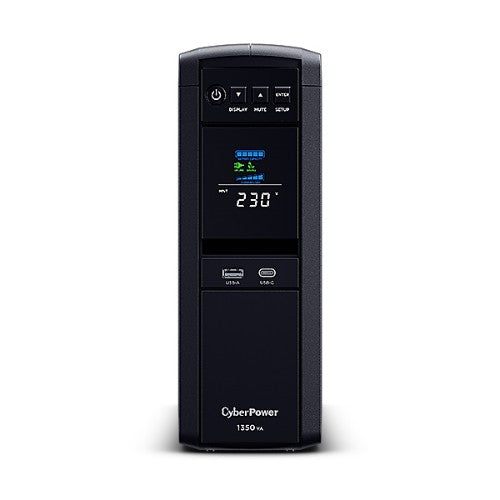

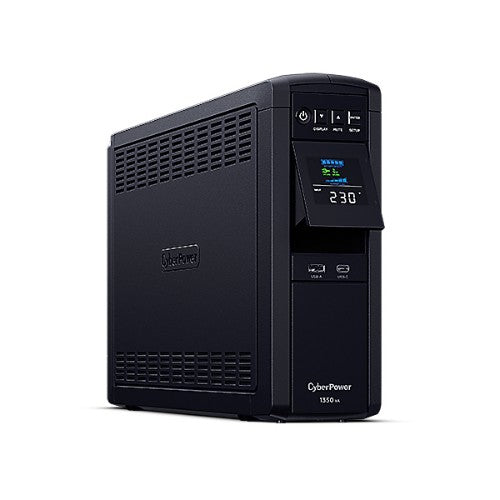

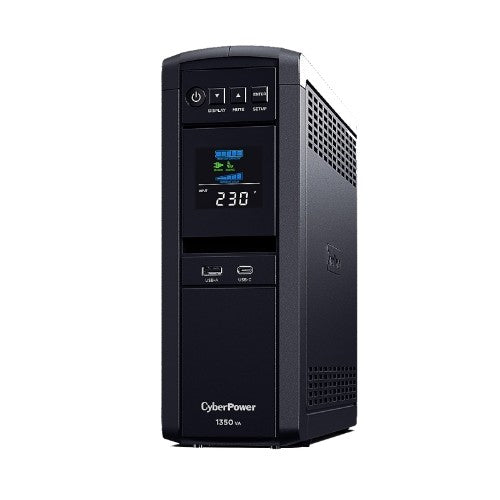

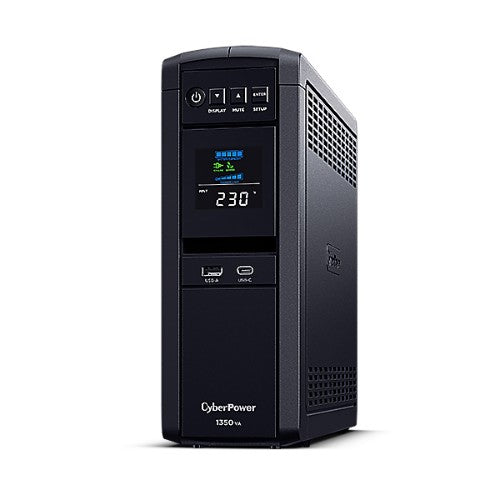

CyberPower CP1350EPFCLCD uninterruptible power supply (UPS) Line-Interactive 1.35 kVA 780 W 6 AC outlet(s)

Line-Interactive, 1350VA, 780W, 6 Outlets, AVR, RJ-11/RJ-45 Protection, USB, DB9, LCD

Description

Backup PFC Sinewave Series for Mac.

Designed for new Mac Pro with additional USB ports on front to recharge mobile equipments.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	1.35 kVA
Output power	780 W
Input operation voltage (min)	165 V
Input operation voltage (max)	265 V
Maximum current	10 A
Efficiency	98.5%
Input frequency	50/60 Hz
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Waveform	Pure sine
Power protection features	Overload
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	35 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	1.35 kVA
Output power	780 W
Input operation voltage (min)	165 V
Input operation voltage (max)	265 V
Maximum current	10 A
Efficiency	98.5%
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Waveform	Pure sine
Power protection features	Overload
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	35 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz

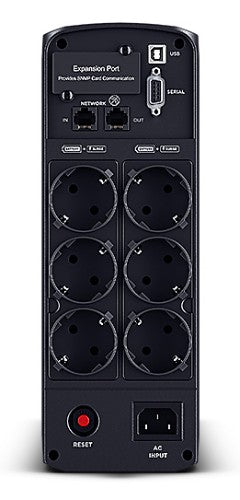

Ports & interfaces
USB port	Yes
Serial interface	Yes
Cabling technology	10/100/1000Base-T(X)
AC outlets quantity	6 AC outlet(s)
AC outlet types	Type F
Number of type F outputs	6
Power plug	C14 coupler
USB 2.0 ports quantity	3
Serial ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery
Number of batteries supported	2
Battery recharge time	8 h
Typical backup time at half load	10 min
Typical backup time at full load	4 min
Battery voltage	12 V
Battery capacity	8.5 Ah
Design
Country of origin	China
Form factor	Tower
Product colour	Black
Cooling type	Passive
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	8504408590
Compliance certificates	RoHS
Certificates
Compliance certificates	RoHS
Cooling
Cooling type	Passive
Weight & dimensions
Width	100 mm
Depth	370 mm
Height	265 mm
Weight	10.9 kg
Package width	195 mm
Package depth	466 mm
Package height	370 mm
Package weight	11.6 kg
Packaging data
Package width	195 mm
Package depth	466 mm
Package height	370 mm
Package weight	11.6 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
Other features
Nominal output voltage	230 V
