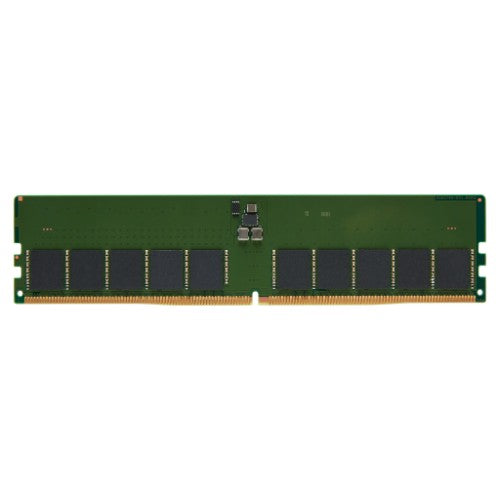

Kingston Technology KSM56E46BD8KM-32HA memory module 32 GB 1 x 32 GB DDR5 ECC

32GB, DDR5, 5600MT/s, ECC, Unbuffered, DIMM, CL46, 2Rx8, 1.1V, 288-pin, 16Gbit, Hynix A

Key Features

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• x72 ECC (x36, 2 independent I/O sub channels)
• 32 internal banks
• Hard/Soft Post Package Repair
• Sideband access with I3C/I2C
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

Description

Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Design
Product colour	Black, Green
JEDEC standard	Yes
Memory
Buffered memory type	Unregistered (unbuffered)
Internal memory	32 GB
Internal memory type	DDR5
Component for	Server
ECC	Yes
Row Precharge Time (TRP)	16
Memory layout (modules x size)	1 x 32 GB
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Lead plating	Gold
Module configuration	4096M x 72
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Memory ranking	2
Programming power voltage (VPP)	1.8 V
Features
On-Die ECC	Yes
Buffered memory type	Unregistered (unbuffered)
Internal memory	32 GB
Internal memory type	DDR5
Component for	Server
ECC	Yes
Row Precharge Time (TRP)	16
Memory layout (modules x size)	1 x 32 GB
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Lead plating	Gold
Module configuration	4096M x 72
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Product colour	Black, Green
Memory ranking	2
Programming power voltage (VPP)	1.8 V
JEDEC standard	Yes
Operational conditions
Operating temperature (T-T)	0 - 95 °C
Storage temperature (T-T)	-55 - 100 °C
Technical details
Sustainability compliance	Yes
Doesn't contain	Halogen
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Doesn't contain	Halogen
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
