Ubiquiti

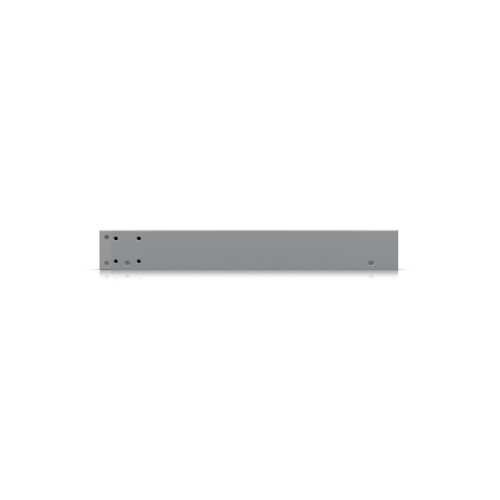

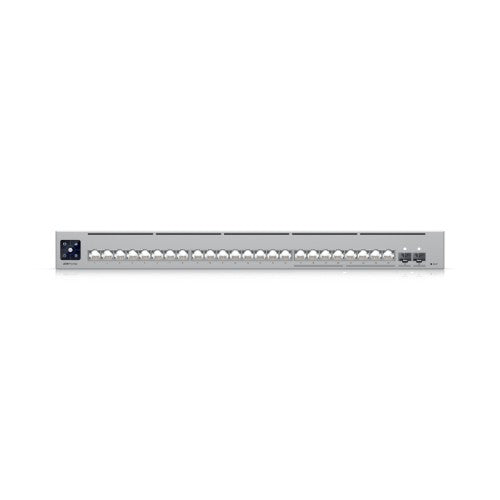

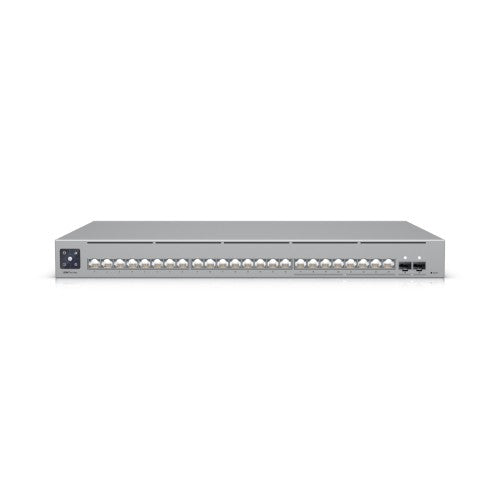

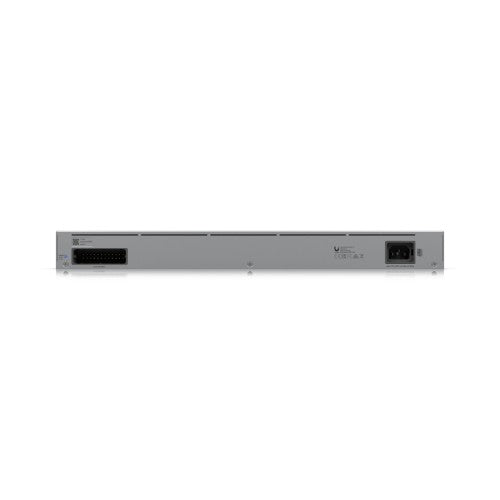

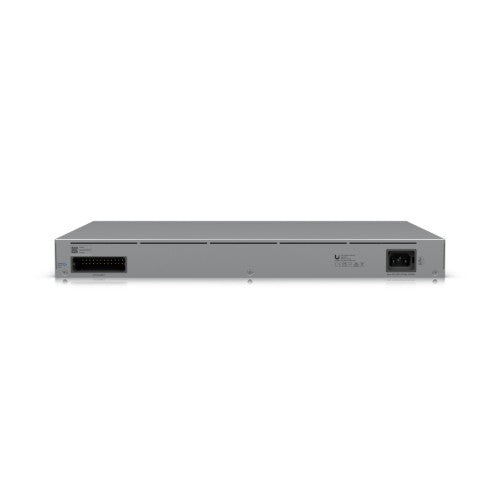

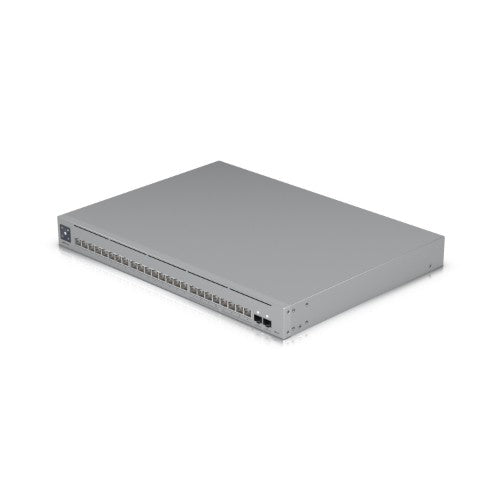

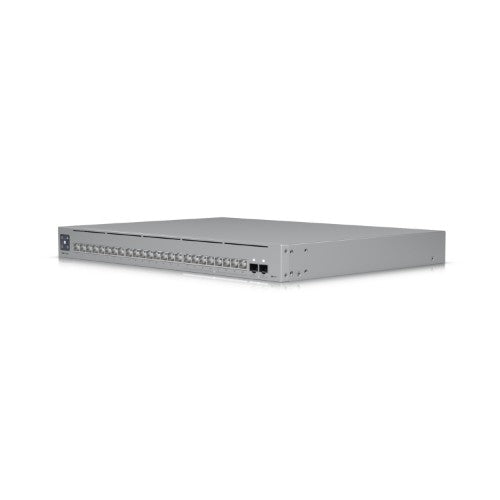

Ubiquiti Pro Max 24 L3 2.5G Ethernet (100/1000/2500) 1U Grey

$1,020.00 AUD
$1,020.00 AUD
Sale Sold out

Use the contact form below to check availability.

50W, 8 x 2.5 GbE RJ45, 16 x GbE RJ45, 2 x 10G SFP+, SGCC steel, 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")

Key Features

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
  • (8) 2.5 GbE RJ45 ports
  • (16) GbE RJ45 ports
  • (2) 10G SFP+ ports
  • DC power backup ready
  • Managed with UniFi Network 8.0.24 and later

Description

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

Specifications

Management features
Reset button Yes
Switch layer L3
Ports & interfaces
SFP+ module slots quantity 2
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity 16
Power connector AC/DC
2.5G Ethernet (copper) ports quantity 8
Network
Networking standards IEEE 802.1x
VLAN support Yes
Rate limiting Yes
Port mirroring Yes
Flow control support Yes
Broadcast storm control Yes
10G support Yes
Virtual LAN features Voice VLAN
IGMP snooping Yes
Data transmission
Switching capacity 112 Gbit/s
Jumbo frames support Yes
Static route Yes
Throughput 56 Gbit/s
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP relay, DHCP snooping
Design
Reset button Yes
Rack mounting Yes
Stackable Yes
Display type LCM
Product colour Grey
Form factor 1U
LED indicators Link, Network, Speed, Status
Housing material SGCC
Power
Power consumption (max) 50 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Redundant power supply (RPS) support Yes
Power source AC/DC
Power connector AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Virtual LAN features
VLAN support Yes
Virtual LAN features Voice VLAN
Weight & dimensions
Width 442.4 mm
Depth 325 mm
Height 43.7 mm
Weight 4.3 kg
Packaging content
Rack mount kit Yes
Cables included Power
Sustainability
Sustainability certificates CE, Federal Communications Commission (FCC)
Performance
Stackable Yes
Technical details
Sustainability certificates CE, Federal Communications Commission (FCC)
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Packaging data
Rack mount kit Yes
Cables included Power
