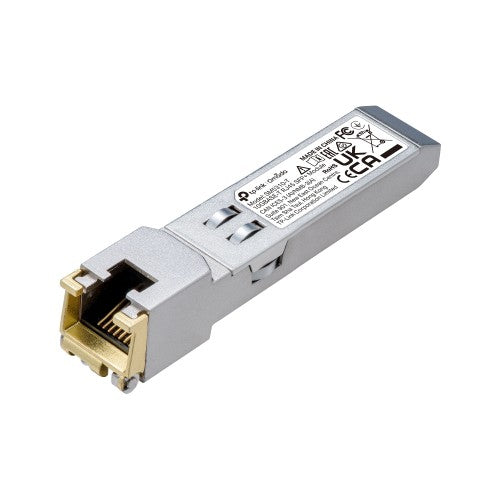

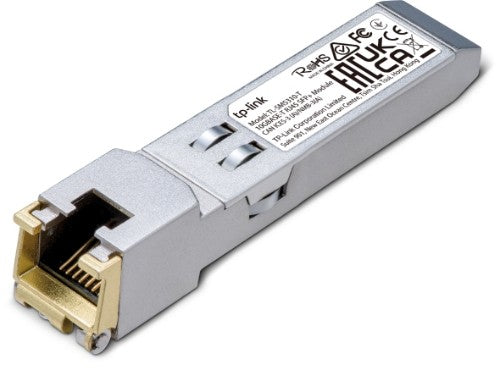

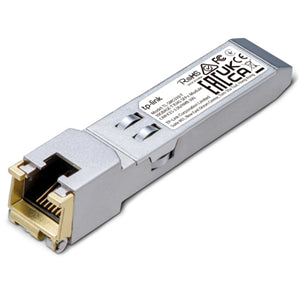

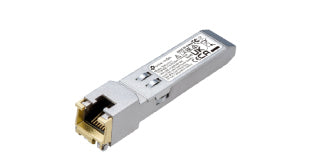

TP-Link Omada 10G BASE-T RJ45 SFP+ Module

10G BASE-T RJ45 SFP+, 67.4x13.75x13.8 mm

Key Features

• Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
• Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
• Support DDM (Temperature and Voltage)
• Hot-Pluggable SFP+ Footprint Features
• Support TX Disable function
• Fully Metallic Enclosure for Low EMI

Description

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP+ Module

• Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
• Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
• Support DDM (Temperature and Voltage)
• Hot-Pluggable SFP+ Footprint Features
• Support TX Disable function
• Commercial Product Operating Temperature Range: 0-70°C
• Fully Metallic Enclosure for Low EMI

PACKAGE CONTENTS
Package Contents • 10G BASE-T RJ45 SFP+ Module TL-SM5310-T
• Installation Guide

HARDWARE FEATURES
Hot Swappable Yes

TRANSCEIVER
Standards and Protocols IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
Power Supply 3.3V
Max. Cable Length 100BASE-TX: UTP cat .5 or above (max. 100m)
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
10GBASE-T: UTP cat.6a or above (max. 30m)
Data Rate 10.3 Gbps
Port Type 1× 10G RJ45 Port
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0–70 ℃ (32–158 ℉)
Storage Temperature: -40–85 ℃ (-40–185 ℉)

Specifications

Performance
SFP transceiver type	Copper
Ethernet LAN	Yes
Interface type	RJ-45
Maximum data transfer rate	10300 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
Maximum transfer distance	100 m
Ethernet interface type	10 Gigabit Ethernet
Copper ethernet cabling technology	10GBASE
Easy to install	Yes
Product colour	Silver
Housing material	Metal
Hot-Plug support	Yes
Features
Easy to install	Yes
Product colour	Silver
Housing material	Metal
Hot-Plug support	Yes
Form factor	SFP+
Power
Input voltage	3.3 V
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Network
SFP transceiver type	Copper
Interface type	RJ-45
Maximum data transfer rate	10300 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
Ethernet interface type	10 Gigabit Ethernet
Weight & dimensions
Width	67.4 mm
Depth	13.8 mm
Height	13.8 mm
Packaging content
Quantity per pack	1 pc(s)
Technical details
Ethernet LAN	Yes
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Logistics data
Quantity per pack	1 pc(s)
