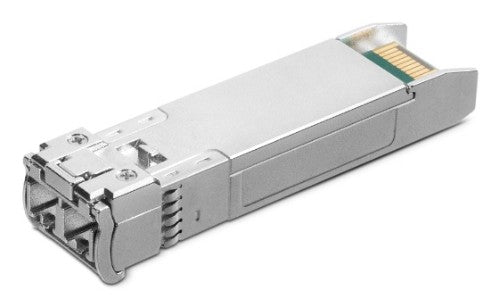

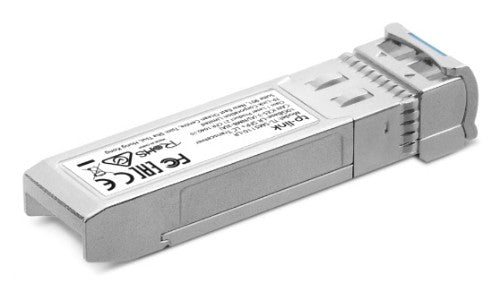

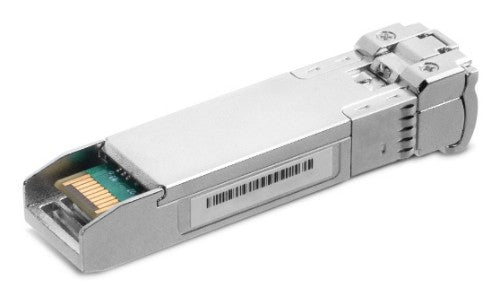

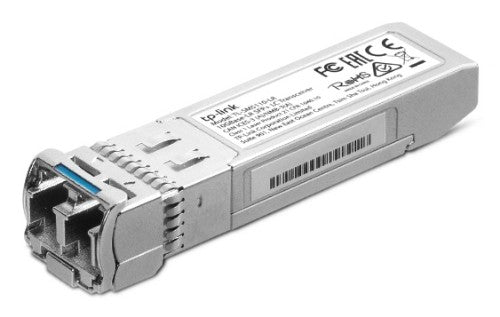

TP-Link SM5110-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm

$61.59 AUD
$61.59 AUD
Sale Sold out

Use the contact form below to check availability.

TP-Link SM5110-LR, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m

Description

TP-Link SM5110-LR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Input voltage: 3.3 V. Width: 56.7 mm, Depth: 13.9 mm, Height: 10.3 mm

Specifications

Performance
SFP transceiver type Fiber optic
Digital Diagnostics Monitoring (DDM) Yes
Interface type SFP+
Maximum data transfer rate 10000 Mbit/s

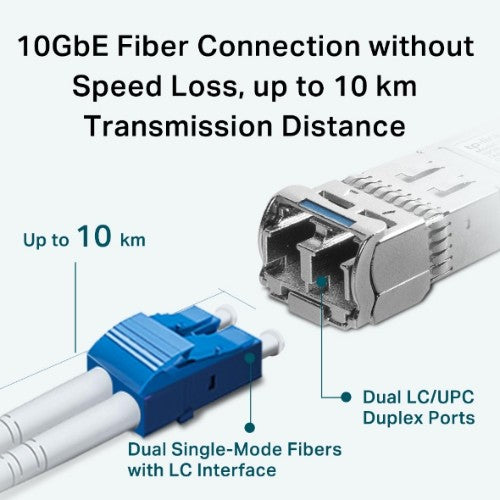

Fiber optic connector LC
Maximum transfer distance 10000 m
Wavelength 1310 nm
Fiber cable diameters supported (core/cladding) 9/125 µm
Duplex system Full
Single-mode fiber (SMF) supported Yes
Hot-swap Yes
Features
Hot-swap Yes
Power
Input voltage 3.3 V
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Network
SFP transceiver type Fiber optic
Interface type SFP+
Maximum data transfer rate 10000 Mbit/s
Fiber optic connector LC

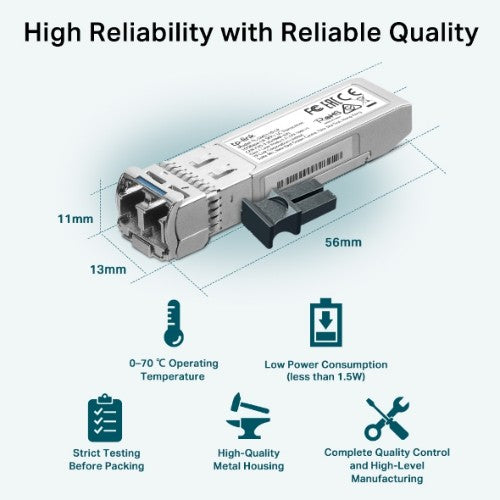

Weight & dimensions
Width 56.7 mm
Depth 13.9 mm
Height 10.3 mm
