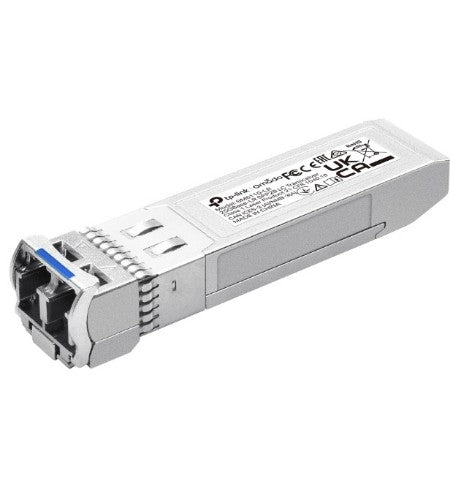

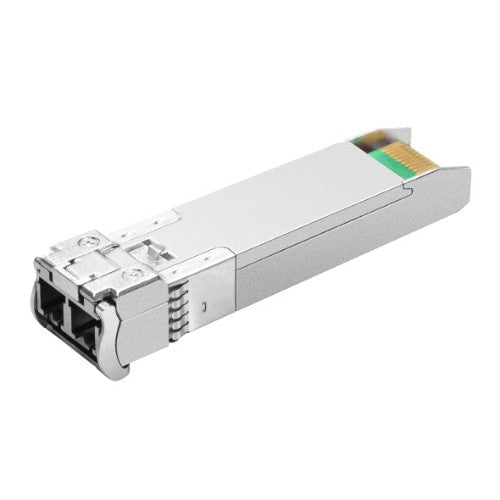

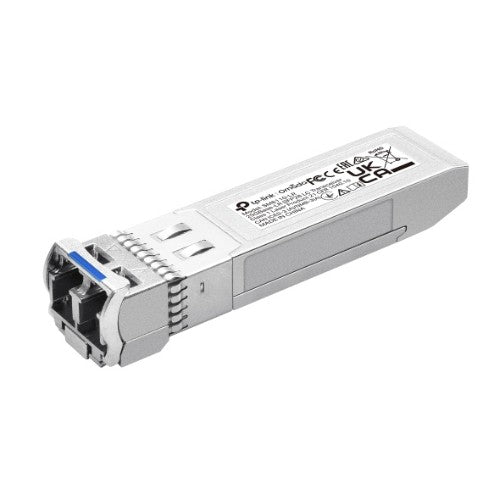

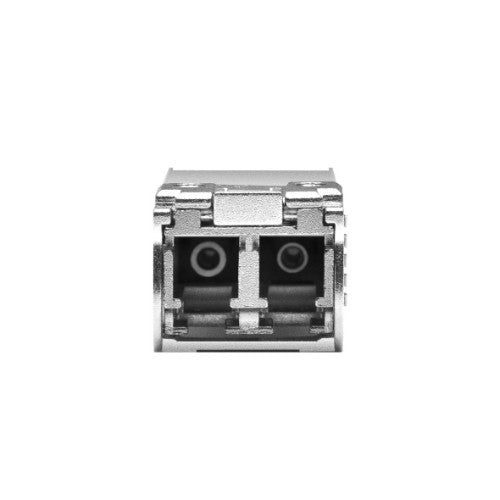

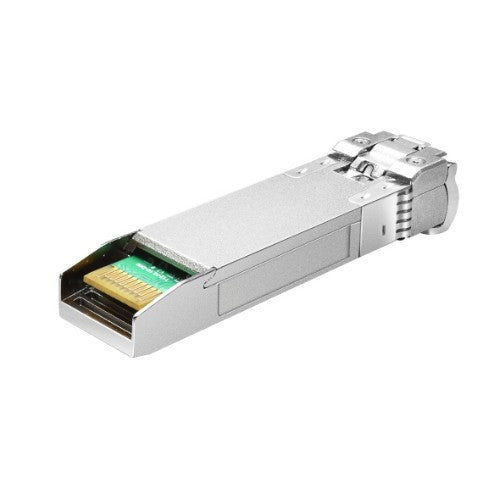

TP-Link SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm

Omada 25GBase-LR SFP28 LC Transceiver

Key Features

• Single-mode SFP+/SFP28 LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Low Power Consumption no more than 1.2 W
• Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
• Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X

Description

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	25780 Mbit/s
Maximum transfer distance	10000 m
Wavelength	1310 nm
Fiber cable diameters supported (core/cladding)	9/125 µm
Product colour	Grey
Hot-Plug support	Yes
Hot-swap	Yes
Features
Product colour	Grey
Hot-Plug support	Yes
Hot-swap	Yes
Power
Input voltage	3.3 V
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 90%
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Network
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	25780 Mbit/s
Weight & dimensions
Width	57 mm
Depth	14 mm
Height	12 mm
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
