TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz), 802.11 a/b/g/n/ac/ax/be, 1× 2.5G Ethernet, 220 × 220 × 32.5 mm

Key Features

• BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
• A clear 6 GHz band brings cleaner and wider band resources
• 1× 2.5G Port unlocks the full potential of Wi-Fi 7
• 320 MHz bandwidth enables many more simultaneous transmissions
• Multi-Link Operation and Multi-RUs ensure the high performance of your network
• Advanced Functions: Centralized management, mesh, and AI roaming

Description

Ultra-Thin Enterprise WiFi 7 Access Point

- Next-Gen WiFi 7
- Wi-Fi Speeds up to 9214 Mbps
- Multi-Link Operation (MLO)
- 1× 2.5G RJ45 Port
- PoE Power
- Ultra-Thin Design
- Centralized Cloud Management
- Omada Mesh Technology

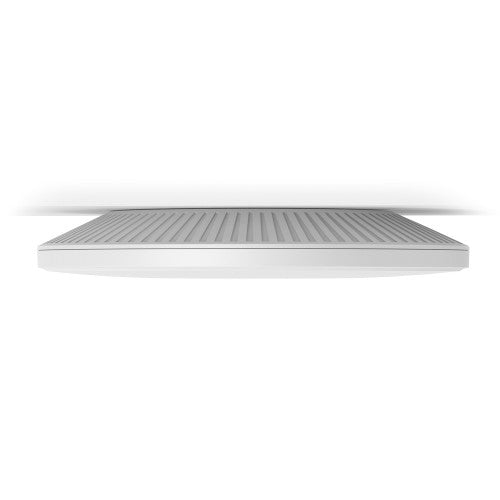

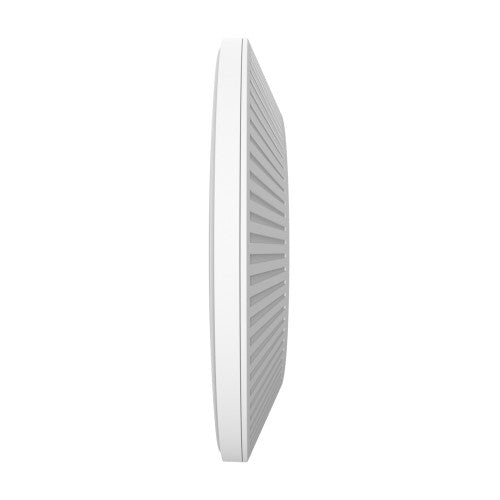

Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

Boosted Network Security

- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	9300 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
Number of users	380 user(s)
Web-based management	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Certification	CE, FCC, RoHS, IC
MIMO type	Multi User MIMO
MIMO	Yes
Airtime Fairness (ATF)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	Yes
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	9300 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
Number of users	380 user(s)
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Bluetooth	Yes
Bluetooth version	5.2
MIMO type	Multi User MIMO
MIMO	Yes
Airtime Fairness (ATF)	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	2880 Mbit/s
Maximum data transfer rate (6 GHz)	5760 Mbit/s
BeamForming	Yes
Security
Number of SSID supported	24
Security algorithms	SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
MAC address filtering	Yes
Access Control List (ACL)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Management features
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Design
Placement	Ceiling, Wall
LED indicators	Yes
Product colour	White
Certification	CE, FCC, RoHS, IC
Antenna
Antenna type	Internal
Certificates
Certification	CE, FCC, RoHS, IC
Software
Access Control List (ACL)	Yes
Weight & dimensions
Width	220 mm
Depth	220 mm
Height	32.5 mm
Packaging data

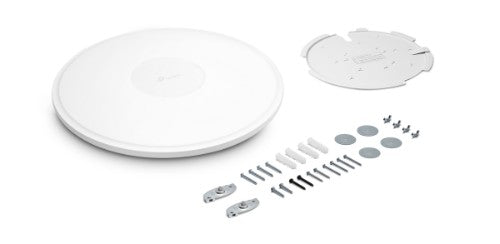

Mounting kit	Yes
AC adapter included	No
Packaging content
Mounting kit	Yes
AC adapter included	No
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Quantity per pack	1 pc(s)
