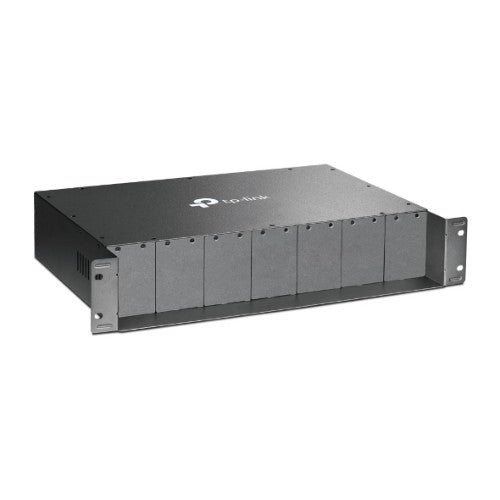

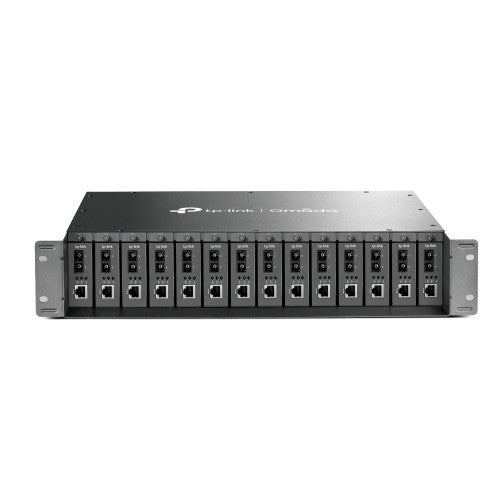

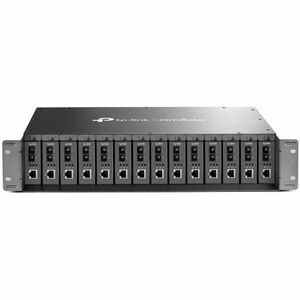

TP-Link Omada 14-Slot Rackmount Chassis

2U, 14-Slot Rackmount Chassis, 482×309×86 mm

Key Features

• 14 bays to house up to 14 media converters
• 9 VDC / 0.6 A power output
• Optional redundant power supply to ensure non-stop reliable operation
• Hot-swappable
• Mounted two cooling fans for better ventilation
• 2U 19-inch rack-mountable

Description

The Omada 14-Slot Rackmount Chassis MC1400 is specially designed to accommodate 14 Omada Media Converters for central power supply, saving space and power cables. Continuous operation is important to fiber communication, so the chassis is equipped with an optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed inside. Together with Omada MC series Gigabit / Fast Ethernet media converters, MC1400 is the ideal solution for your media conversion network.

Specifications

Technical details
Rack mounting	Yes
Rack capacity	2U
Number of slots	14
Number of fans	2 fan(s)
Product colour	Black
Cooling type	Active
Power
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	482 mm
Height	86 mm
Depth	358 mm
