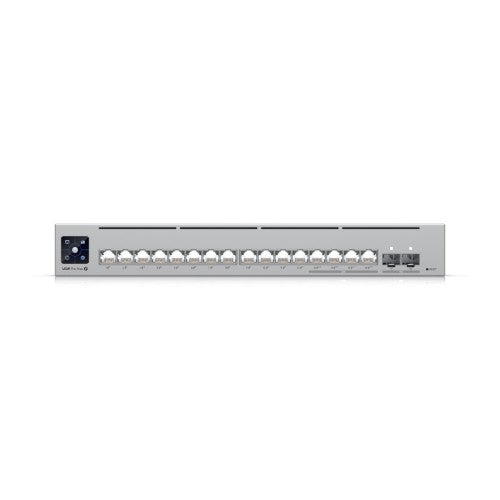

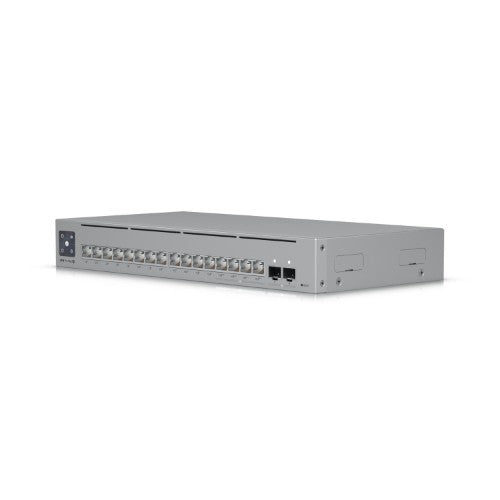

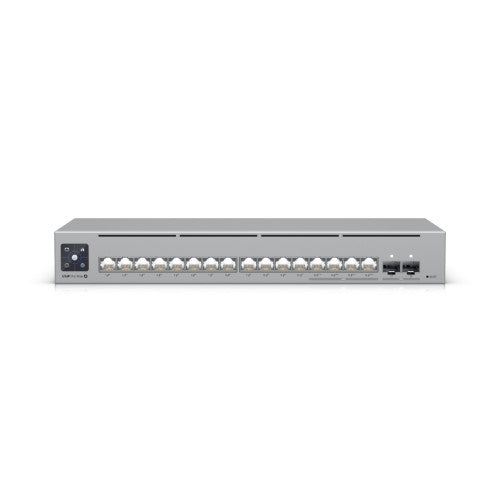

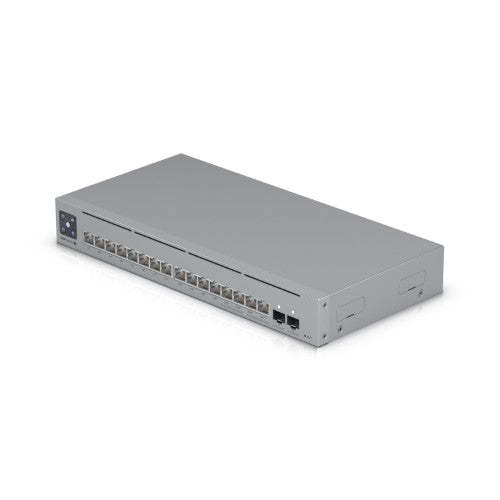

Ubiquiti Pro Max 16 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

L3, 16x RJ-45, 2x SFP+, 84 Gbps switching capacity, AC/DC, PoE 180W

Key Features

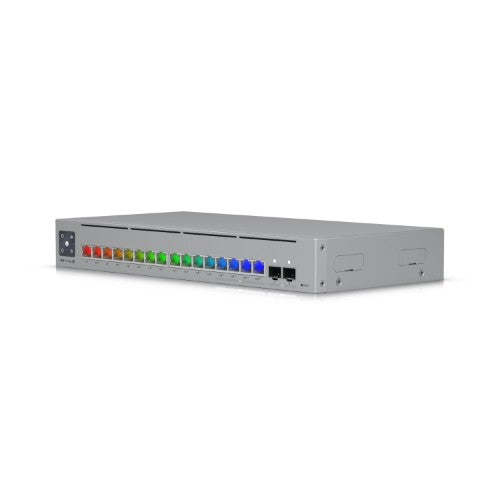

• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
• (4) 2.5 GbE PoE++ ports
• (12) GbE PoE+ ports
• (2) 10G SFP+ ports
• 180W total PoE availability

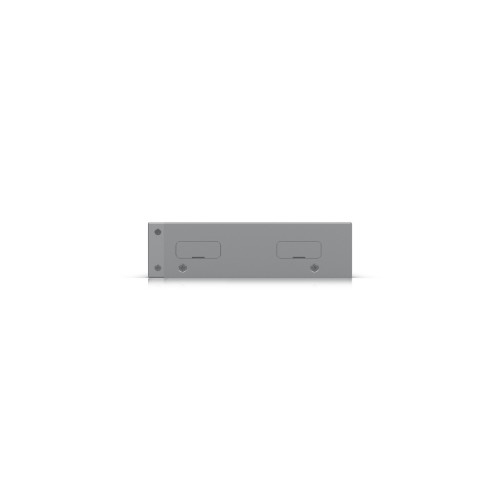

• Versatile desktop, wall, and rack mounting
• Silent, fanless cooling system

Description

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Specifications

Management features
Reset button	Yes
Switch layer	L3
Switch type	Managed
Multicast support	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	12

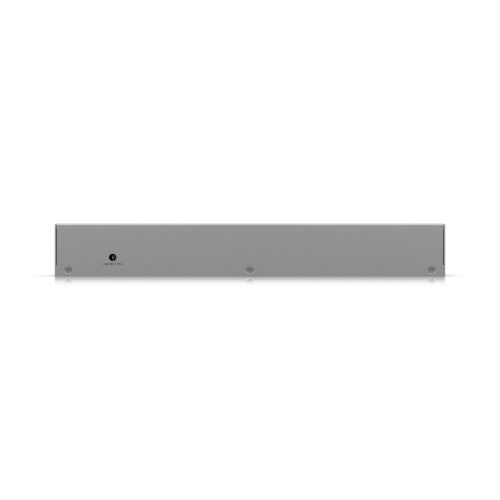

Power connector	DC-in jack
2.5G Ethernet (copper) ports quantity	4
Network
Networking standards	IEEE 802.1x
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Voice VLAN
IGMP snooping	Yes
Data transmission
Switching capacity	84 Gbit/s
Jumbo frames support	Yes
Forwarding rate	62.496 Mpps
Throughput	42 Gbit/s
Security
Loop protection	Yes
IGMP snooping	Yes
DHCP features	DHCP snooping, DHCPv6 relay
Multicast features
Multicast support	Yes
Design
Reset button	Yes
Rack mounting	Yes
Display type	LCM
Product colour	Grey
LED indicators	System
Housing material	Steel
Power
Power consumption (max)	30 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
DC input voltage	44 - 57 V
Power source	AC/DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	15 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	12
Total Power over Ethernet (PoE) budget	180 W
Power over Ethernet 4PPoE (PoE++) ports quantity	4
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Virtual LAN features	Voice VLAN
Weight & dimensions
Width	325.1 mm
Depth	160 mm
Height	43.7 mm
Weight	2.1 kg

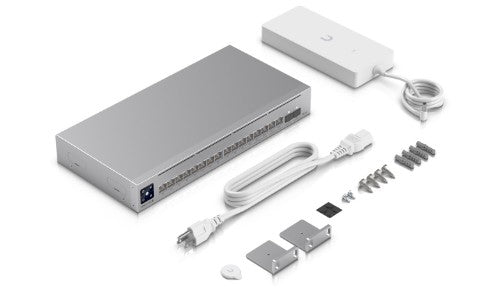

Packaging content
Manual	Yes
Cables included	Power
Mounting brackets included	Yes
Packaging data
Mounting brackets included	Yes
Manual	Yes
Cables included	Power
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
