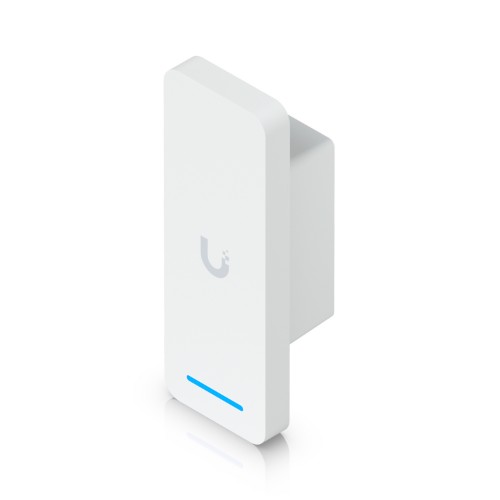

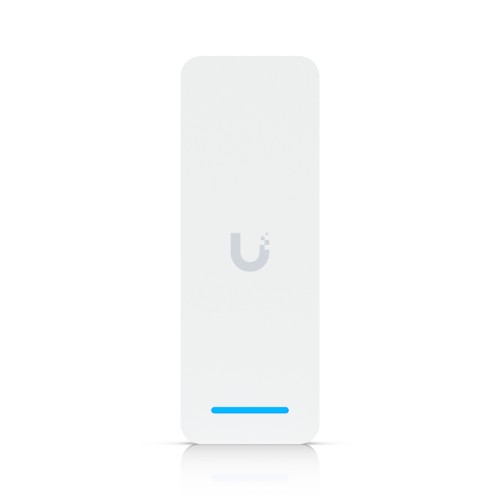

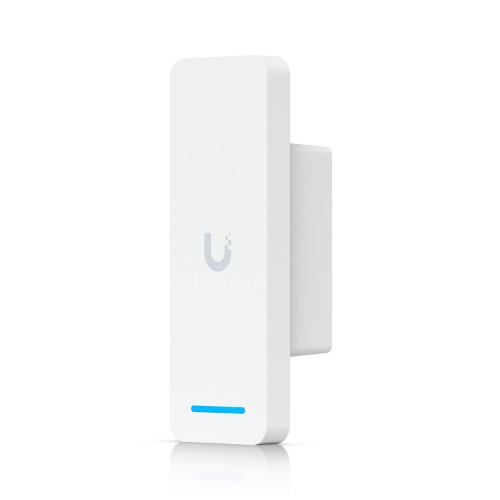

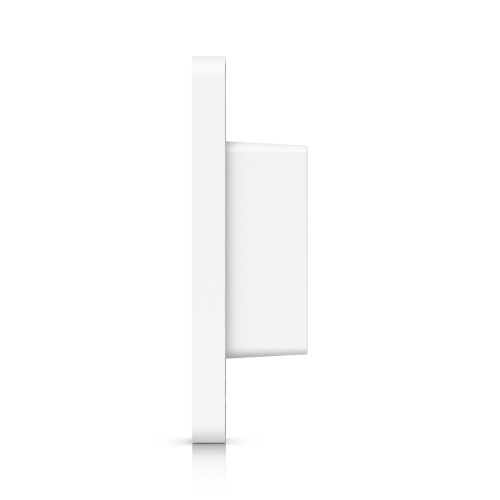

Ubiquiti Access Ultra Basic access control reader White

Wall mount, gang box mount, 10/100 MbE RJ45 port, PoE+, IP55, Polycarbonate, aluminum alloy, white

Key Features

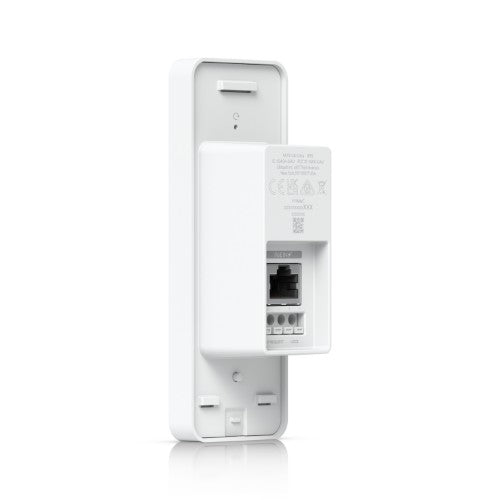

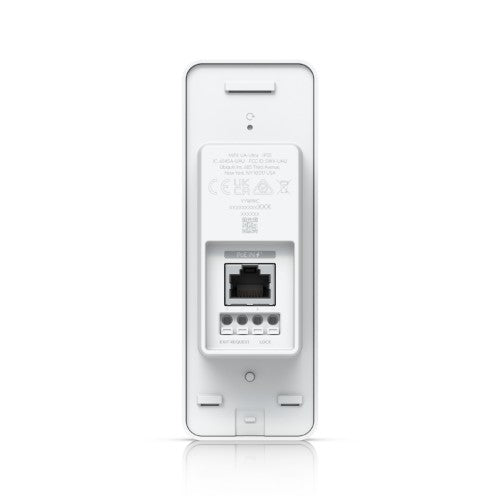

• (1) Lock terminal (12V/1A)
• (1) Exit request input
• Unlock using an NFC card or UniFi Identity mobile app
• IP55 weather resistance (-30 to 40° C)

Description

Tamper-resistant access reader with a built-in hub for complete, single-door entry control from one device.

Specifications

Technical details
Recommended usage	Indoor & outdoor
Ethernet LAN data rates	10,100 Mbit/s
Type	Basic access control reader
Authentication type	Access chip/card
Fingerprint reader	No
Access chip/card reader	Yes
Product colour	White
Housing material	Aluminium, Polycarbonate (PC)
International Protection (IP) code	IP55
Near Field Communication (NFC)	Yes
Buzzer	Yes
LED indicators	Status
Bluetooth version	4.2
Bluetooth	Yes
Tamper protection	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Display
Built-in display	No
Camera
Front camera	No
Ports & interfaces
Ethernet LAN data rates	10,100 Mbit/s
Near Field Communication (NFC)	Yes
Bluetooth version	4.2
Bluetooth	Yes
Ethernet LAN (RJ-45) ports	1
Power
DC current (max)	1 A
DC voltage range	12 V
Power consumption (max)	18 W
Weight & dimensions
Width	45 mm
Weight	140 g
Height	126 mm
Depth	37.5 mm
Packaging content

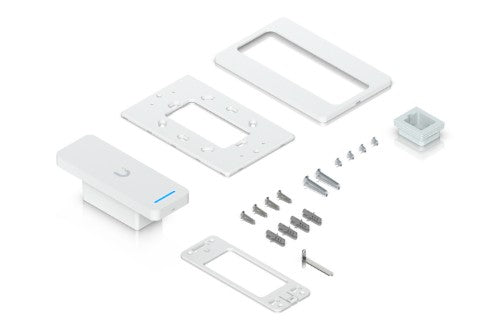

Mounting bracket(s) included	Yes
Operational conditions
Operating temperature (T-T)	-30 - 40 °C
Operating relative humidity (H-H)	5 - 90%
