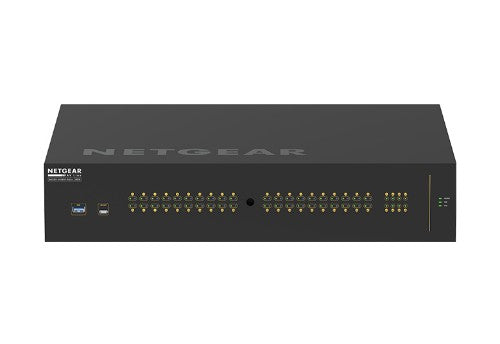

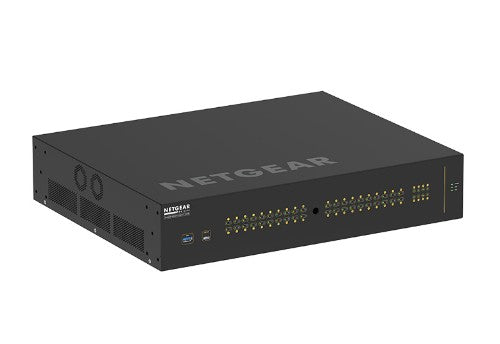

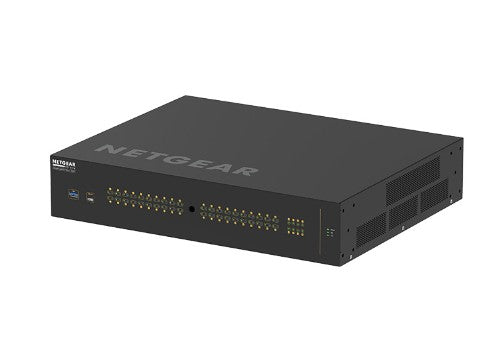

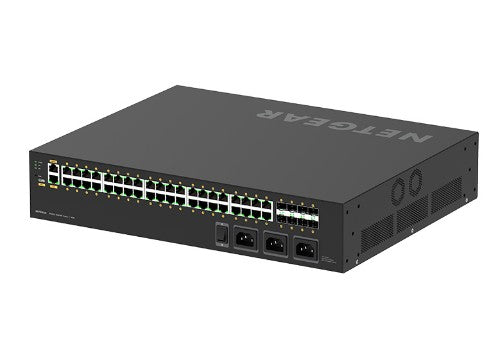

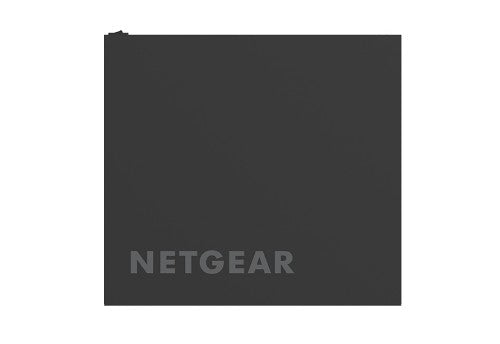

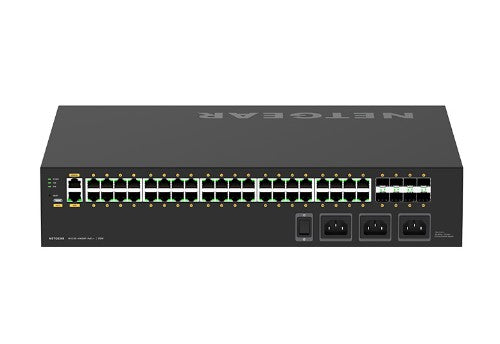

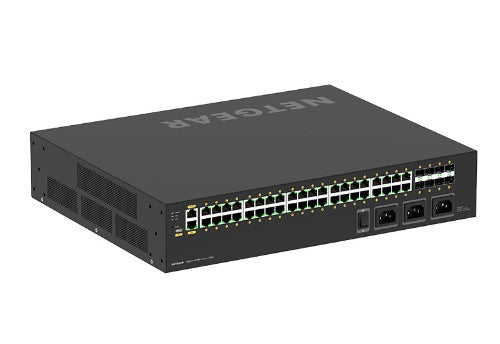

NETGEAR M4250-40G8XF-PoE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black

240 Gbps, 40x 1G RJ-45 PoE+, 8x SFP+, USB C, RJ45-DB9, 440x86.4x350mm

Description

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

Pre-configured for out-of-the-box use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles

Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Specifications

Management features
Multicast support	Yes
Switch layer	L2/L3/L4
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1Qav, IEEE 802.1ak, IEEE 802.1as, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Number of VLANs	4000
VLAN support	Yes
10G support	Yes
Virtual LAN features	Private VLAN
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	Private VLAN
Data transmission
Number of VLANs	4000
Jumbo frames	12000
MAC address table	16000 entries
Switching capacity	240 Gbit/s
Throughput	178.56 Mpps
Latency (1 Gbps)	2.78 µs
Latency (10 Gbps)	0.73 µs
Jumbo frames support	Yes
Packet buffer memory	32 MB
Performance
Packet buffer memory	32 MB
Noise level	71 dB
Ports & interfaces
SFP+ module slots quantity	8
Basic switching RJ-45 Ethernet ports quantity	40
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45/USB Type-C
Security
Security algorithms	SNMP
IGMP snooping	Yes
DHCP features	DHCP relay, DHCP server, DHCPv6 server
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Product colour	Black
Form factor	2U
LED indicators	Yes
Power
Power source	PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	90 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	40
Total Power over Ethernet (PoE) budget	2880 W
Weight & dimensions
Width	440 mm
Depth	350 mm
Height	86.4 mm
Weight	10.3 kg
Packaging data
Rack mount kit	Yes
User guide	Yes
Packaging content
Rack mount kit	Yes
User guide	Yes
