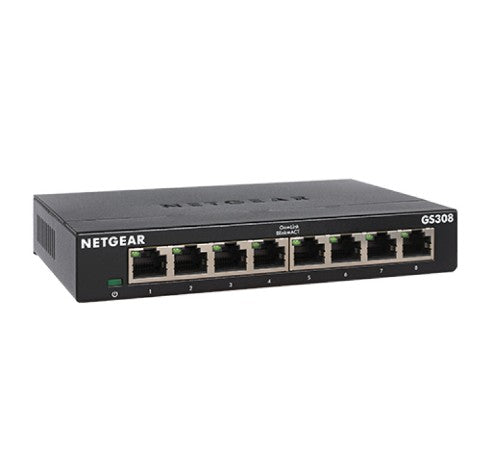

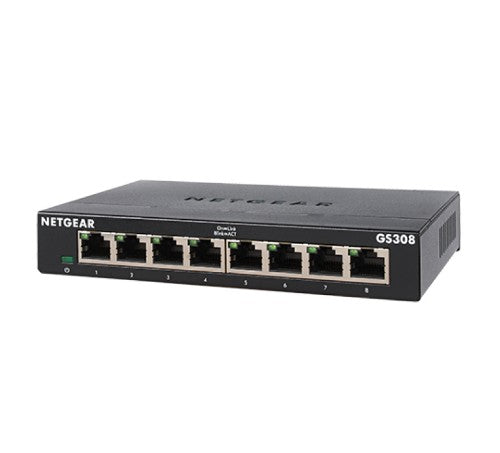

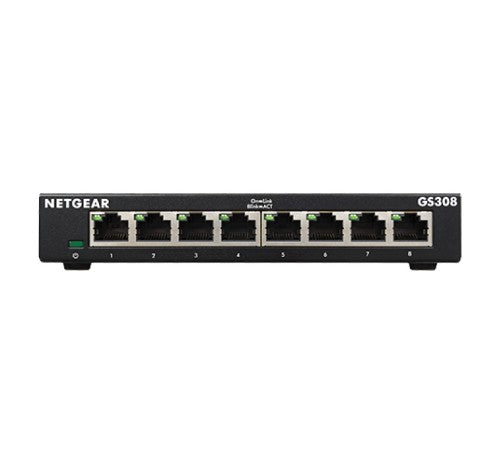

NETGEAR GS308 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

GS308v3, 8x RJ-45, 10/100/1000Mbps, 8K, 128 KB, 16 Gbps, metal

Key Features

• Auto-MDI/MDIX eliminates the need for crossover cables
• LED indicators for ease of use
• Energy-efficient technology for power savings
• Fanless design for silent operation (except GS348)
• Auto-negotiation for automatic connection at the highest common speed between switch and an end device
• Non-blocking switching architecture for maximum throughput at wire speed
• 802.1p QoS for traffic/frame prioritization

Description

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Specifications

Management features
Switch layer	L2
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0

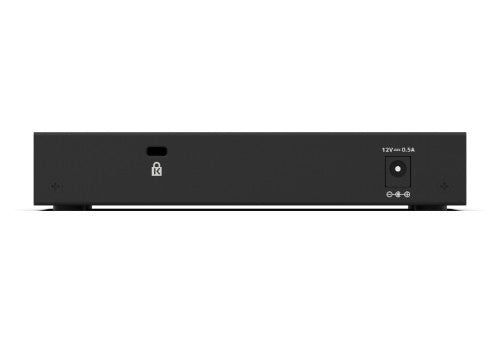

Power connector	DC-in jack
Network
Cable length detection	Yes
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames	9216
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Latency (1 Gbps)	2.6 µs
Jumbo frames support	Yes
Packet buffer memory	0.128 MB
Forwarding rate	1.448 Mpps
Design
Wall mountable	Yes
Rack mounting	No
Product colour	Black
LED indicators	Activity, Link, Power
Housing material	Metal
Certification	CE Mark FCC Part 15 Class B IC Class B RCM CCC VCCI KC
Performance
Mean time between failures (MTBF)	3711898 h
Packet buffer memory	0.128 MB
Power
Power consumption (max)	3.04 W
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	10.4 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	29 mm
Weight	390 g
Certificates
Certification	CE Mark FCC Part 15 Class B IC Class B RCM CCC VCCI KC
