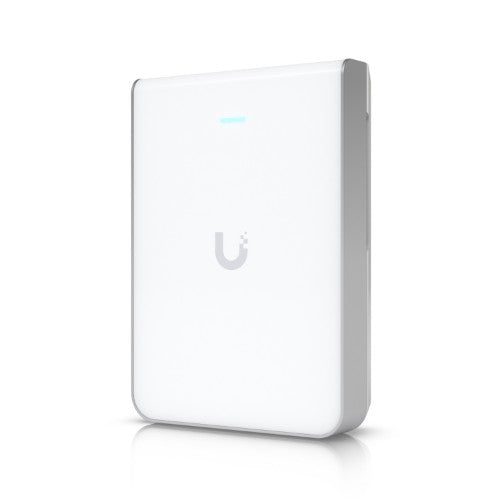

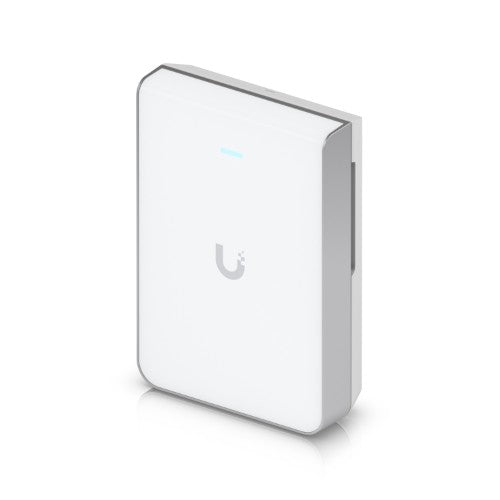

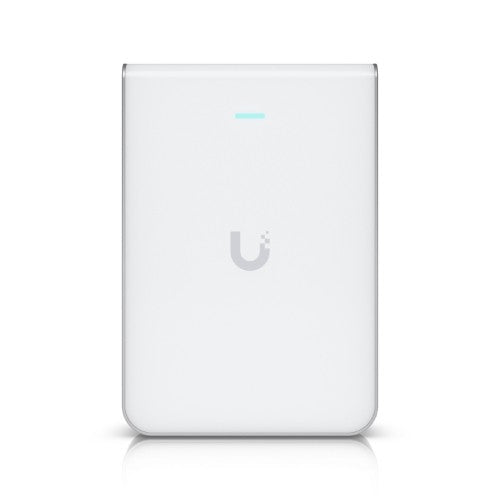

Ubiquiti U7 Pro Wall 5700 Mbit/s White Power over Ethernet (PoE)
Regular price
$456.00 AUD
Regular price
Sale price
$456.00 AUD
Unit price
per
Use the contact form below to check availability.
WiFi 7 AP, 6 GHz, 6 spatial streams, 2.5 GbE RJ45 port, PoE+, 22W, white
Key Features
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile deployment with optional Flush Mount and Table Stand accessories
Description
Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 5700 Mbit/s |
| Ethernet LAN data rates | 2500 Mbit/s |
| Frequency band | 2.4 - 6 GHz |
| VLAN support | Yes |
| Reset button | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 5700 Mbit/s |
| Ethernet LAN data rates | 2500 Mbit/s |
| Frequency band | 2.4 - 6 GHz |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Throughput data rate | 5764 Mbit/s |
| Spatial streams | 6 |
| Security | |
| Security algorithms | PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 44 - 57 V |
| Design | |
| Placement | Wall |
| Housing material | Aluminium, Polycarbonate (PC) |
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | White |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions | |
| Width | 103 mm |
| Depth | 150 mm |
| Height | 36 mm |
| Weight | 580 g |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
