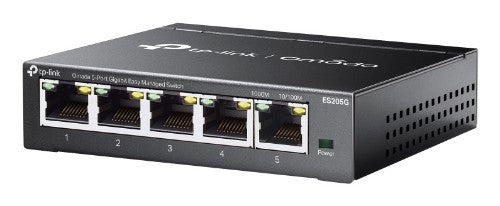

TP-Link Omada 5-Port Gigabit Easy Managed Switch

5× 10/100/1000Mbps RJ-45, AUTO Negotiation/AUTO MDI/MDIX, 10 Gbps, 8K MAC, 5VDC / 0.6A

Key Features

• 5× 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app†
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design

Description

Omada 5-Port Gigabit Easy Managed Switch

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

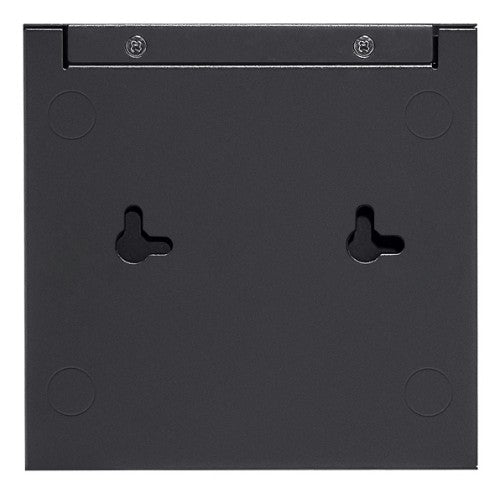

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Specifications

Management features
Reset button	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	15
MAC address table	8000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	4 MB
Forwarding rate	7.4 Mpps
Security
Loop protection	Yes
IGMP snooping	Yes
DHCP features	DHCP client
Design
Reset button	Yes
Wall mountable	Yes
Product colour	Black
LED indicators	Yes
Performance
Fanless	Yes
Packet buffer memory	4 MB
Auto-negotiation	Yes
Power
Power supply included	Yes
DC input voltage	5 V
Power source	AC/DC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Virtual LAN features
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width	100 mm
Depth	98 mm
Height	25 mm
Packaging content
User guide	Yes
Packaging data
Package type	Box
User guide	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
