DeepCool CG580 WH White

ITX/Micro-ATX/ATX, 2x USB3.0, 1x Audio, ABS/SGCC/Tempered Glass

Description

The CG580 WH is a white-coated, picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 WH is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.

SCENIC VIEW

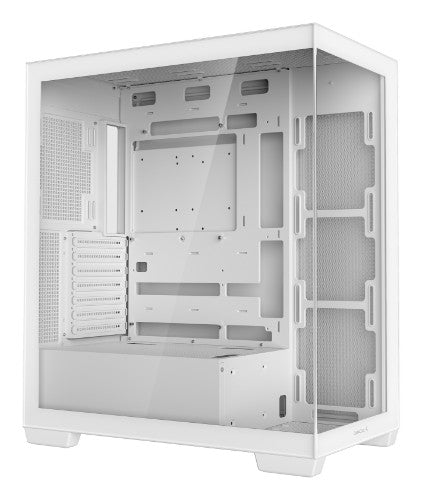

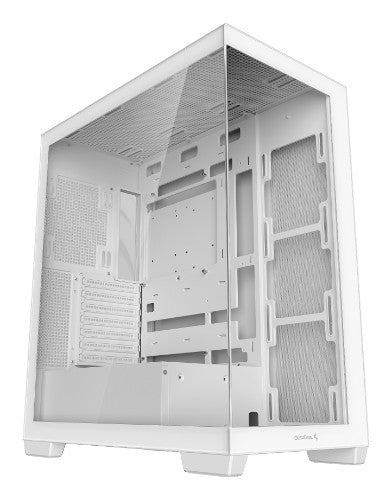

The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build.

KEEPING IT CLEAN

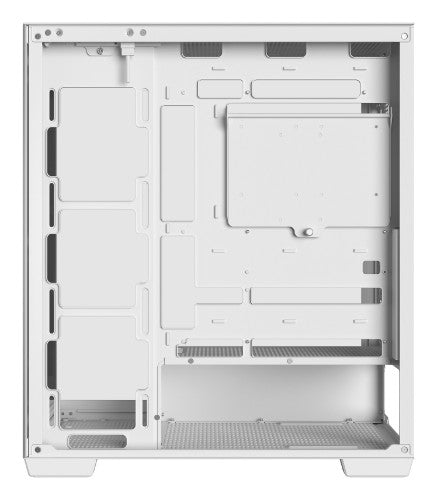

The internal single chamber layout optimizes the available space with 33mm of cable management space, while the motherboard tray supports motherboards with back connectors from ASUS and MSI; as a result, your system will look more steamlined and cleaner than ever before.

THE SUPPORT YOU NEED
Designed to support up to ATX motherboards, 360mm radiators at the top and side, 410mm long GPUs (limited to 262mm if a radiator and fan set are mounted on the side), 210mm PSUs, 176mm tall air coolers, and up to 9 120mm fans, the CG580 WH can be configured in a wide array of combinations for your modern hardware needs. The bottom position can support either a 120mm fan or a 3.5"" HDD drive.

QUALITY OF LIFE FEATURES

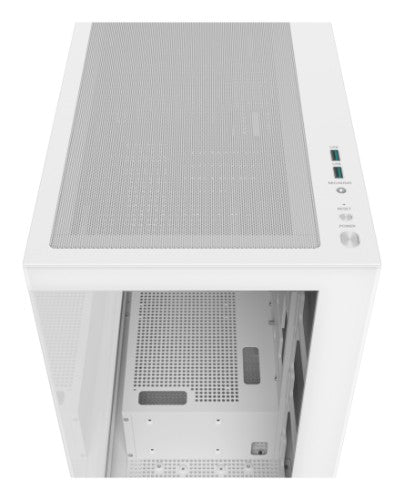

With two USB 3.0 ports and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. The magnetic top filter keeps dust out of your system and makes cleaning a little easier.

Specifications

Ergonomics
Reset button	Yes
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Type	PC
Material	Acrylonitrile butadiene styrene (ABS), SGCC, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Supported motherboard form factors	ATX, ITX, micro ATX
Product colour	White
Number of 2.5" bays	3
Side window	Yes
Reset button	Yes
Cable management	Yes
Number of expansion slots	7
Maximum CPU cooler height	17.6 cm
Maximum graphics card length	41 cm
Maximum PSU length	21 cm
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX, PS2
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,140,240,280,360 mm
Number of side fans supported (max)	3
Side fans diameters supported	120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Side radiator sizes supported	120,240,360 mm
Storage
Supported HDD sizes	3.5"
SSD form factor	2.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	235 mm
Depth	437 mm
Height	501 mm
Weight	7.9 kg
Packaging data
Manual	Yes
Other features
Manual	Yes
