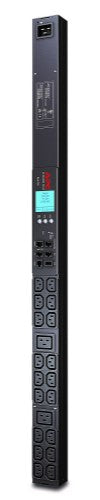

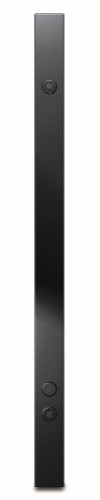

APC AP8858 power distribution unit (PDU) 20 AC outlet(s) 0U Black

NetShelter Metered Rack PDU, 0U, 1PH, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet

Description

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifications

Design
PDU types	Metered
Mounting	Vertical
Product colour	Black
Certification	CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Rack capacity	0U
Ports & interfaces
AC outlets quantity	20 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Input connection type	IEC-320 C20
Output connections	18x IEC 320 C13 2x IEC 320 C19
Features
Certification	CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Management features
Monitoring	Current, Power, Voltage
Power
Maximum power	3680 W
Nominal input voltage	230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
AC input frequency	50 - 60 Hz
Certificates
Certification	CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Operational conditions
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	2.93 kg
Width	56 mm
Depth	44 mm
Height	902 mm
Package width	162 mm
Package depth	107 mm
Package height	1124 mm
Package weight	4.2 kg
Packaging data
Package width	162 mm
Package depth	107 mm
Package height	1124 mm
Package weight	4.2 kg
Technical details
Total carbon footprint (kg of CO2e)	12787.89
Logistics data
Total carbon footprint (kg of CO2e)	12787.89
