DeepCool FT14 Computer case Fan 14 cm Black 1 pc(s)
Regular price
$44.00 AUD
Regular price
Sale price
$44.00 AUD
Unit price
per
Use the contact form below to check availability.
140 mm, 500-1650 RPM, FDB, 78.83 CFM, 3.6 mmAq, ≤25.1 dB(A), 4-pin PWM, 12 VDC, 206 g, Black
FT14
POWERFUL, QUIET, AND DURABLE
ENGINEERING PERFECTION
Each FT14 140mm fan features a powerful 3-phase, 10-pole, 12-slot FOC closed-loop control motor with high-quality MQ magnets. A design combination rarely found in case fans that minimizes vibrations by reducing the force produced between wide gaps between poles and slots.
QUALITY YOU CAN SEE

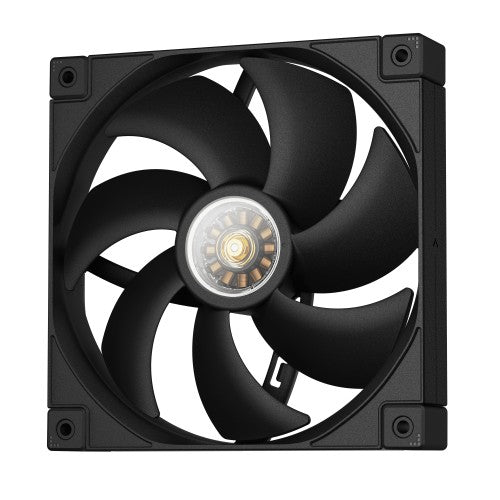

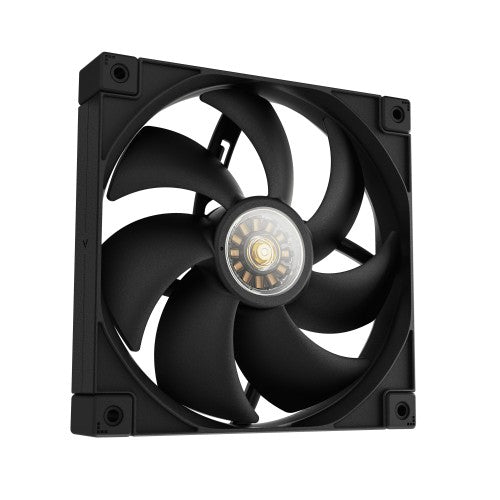

Don't just believe the marketing pitch; each FT14 fan has a transparent window that showcases the high-quality engineering of the fan motor while putting the true Fluid Dynamic Bearing on display. Subtle white LEDs are positioned behind the bearing to highlight every detail and can be turned off with a quick flick of a tiny switch in the rear of the fan hub frame.
ENHANCED MATERIALS
By utilizing an enhanced composite material made up of a fine mix of fiberglass and PBT, the fan blades and frame are extremely consistent, which also reduces the overall sound profile.
IMPRESSIVE IN MANY ASPECTS
All of the research and development results in an impressive performance fan package that focuses on outstanding airflow, concentrated static pressure, and relatively quiet operation.
REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.
OUTSTANDING COVERAGE
DeepCool is so confident in the design of the FT series of fans that we provide five full years of limited warranty coverage.
Description
The FT14 140mm white fans were meticulously designed by the DeepCool team to provide low-noise, high-performance cooling solutions with excellent durability.FT14
POWERFUL, QUIET, AND DURABLE
ENGINEERING PERFECTION
Each FT14 140mm fan features a powerful 3-phase, 10-pole, 12-slot FOC closed-loop control motor with high-quality MQ magnets. A design combination rarely found in case fans that minimizes vibrations by reducing the force produced between wide gaps between poles and slots.
QUALITY YOU CAN SEE
Don't just believe the marketing pitch; each FT14 fan has a transparent window that showcases the high-quality engineering of the fan motor while putting the true Fluid Dynamic Bearing on display. Subtle white LEDs are positioned behind the bearing to highlight every detail and can be turned off with a quick flick of a tiny switch in the rear of the fan hub frame.
ENHANCED MATERIALS
By utilizing an enhanced composite material made up of a fine mix of fiberglass and PBT, the fan blades and frame are extremely consistent, which also reduces the overall sound profile.
IMPRESSIVE IN MANY ASPECTS
All of the research and development results in an impressive performance fan package that focuses on outstanding airflow, concentrated static pressure, and relatively quiet operation.
REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.
OUTSTANDING COVERAGE
DeepCool is so confident in the design of the FT series of fans that we provide five full years of limited warranty coverage.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | Fan |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 14 cm |
| Maximum airflow | 78.83 cfm |
| Maximum air pressure | 3.6 mmH2O |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 7 |
| Fan noise level (max) | 25.1 dB |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1650 RPM |
| Design | |
| Fan connector | 4-pin |
| Illumination colour | White |
| Product colour | Black |
| Illumination LED | Yes |
| Number of LEDs | 1 |
| Number of fan blades | 7 |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Fan voltage | 12 V |
| Fan current | 0.45 A |
| LED power consumption (fan) | 5.4 W |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan weight | 206 g |
| Technical details | |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Packaging data | |

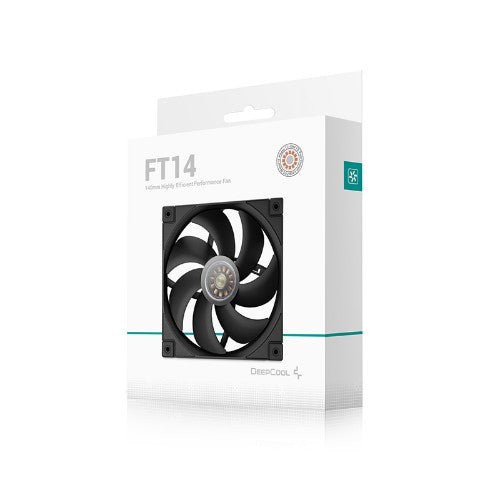

| Package type | Hanging box |
| Packaging content | |

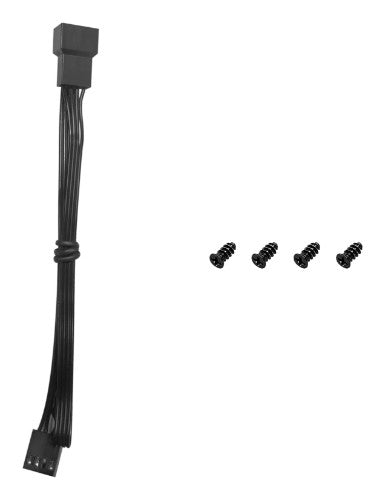

| Screws included | Yes |
| Cables included | 4-pin |
| Number of screws | 4 |
| Package type | Hanging box |
