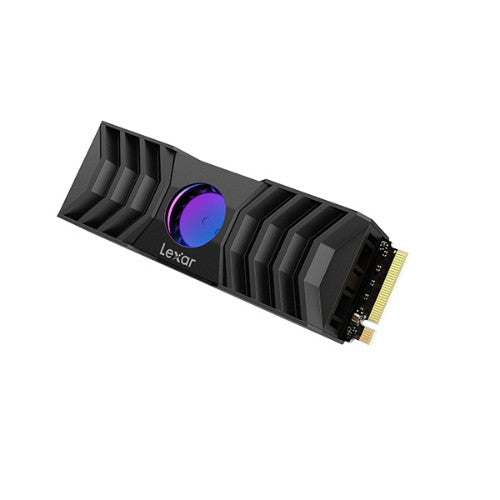

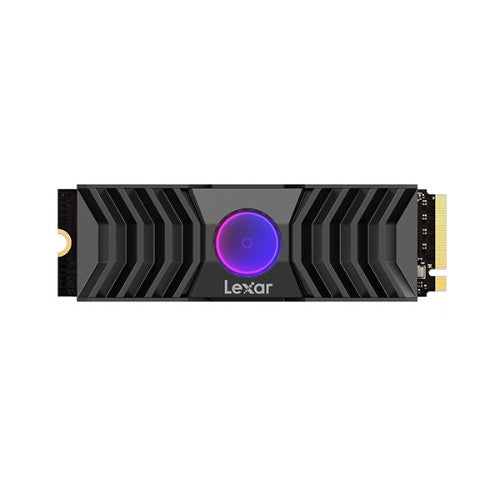

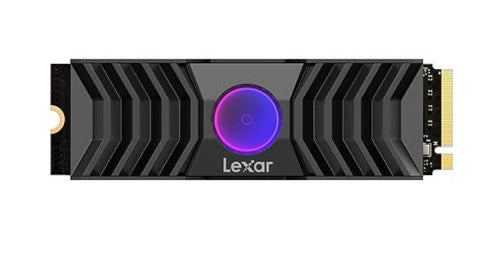

Lexar LNM1090001T-RNANG internal solid state drive 1 TB M.2 PCI Express 5.0 NVMe SLC

1 TB NM1090 with Heatsink M.2 2280 PCIe Gen 5×4 NVMe SSD

Description

PCIe 5.0 speeds of up to 12,000MB/s read, 11,000MB/s write1 deliver cutting-edge performance.

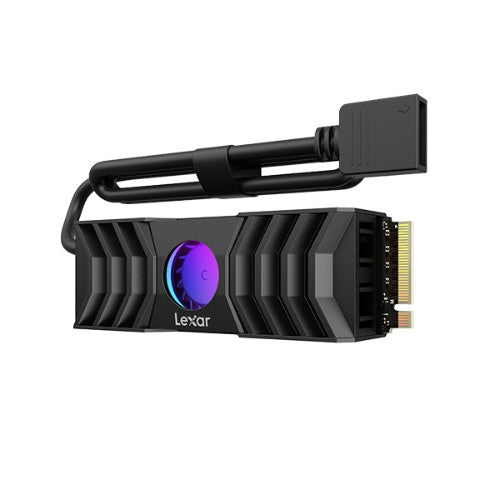

A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.

The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.

Specifications

Features
Interface	PCI Express 5.0
Component for	PC
SSD capacity	1 TB
Write speed	9000 MB/s
NVMe	Yes
NVMe version	2.0
Memory type	SLC
Random read (4KB)	1300000 IOPS
Random write (4KB)	1400000 IOPS
Mean time between failures (MTBF)	1500000 h
TBW rating	700
SSD form factor	M.2
Backlight	Yes
M.2 SSD size	2280 (22 x 80 mm)
Performance
Interface	PCI Express 5.0
Component for	PC
SSD capacity	1 TB
Write speed	9000 MB/s
NVMe	Yes
NVMe version	2.0
Memory type	SLC
Random read (4KB)	1300000 IOPS
Random write (4KB)	1400000 IOPS
Mean time between failures (MTBF)	1500000 h
TBW rating	700
Design
SSD form factor	M.2
Weight & dimensions
Width	80 mm
Depth	22 mm
Height	2.45 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Vibration resistance	20 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
SSD form factor	M.2
