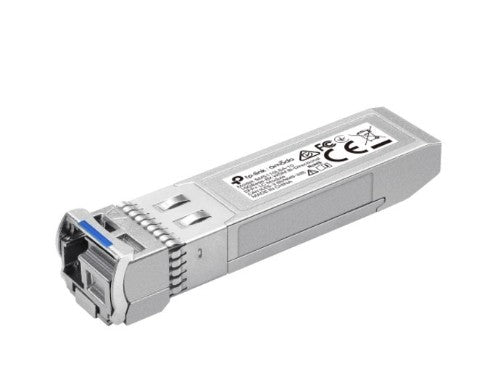

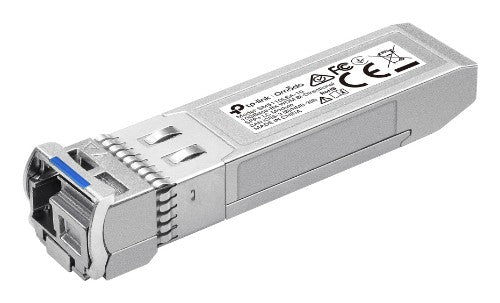

TP-Link Omada SM5110LSA-10 network transceiver module Fiber optic 10312 Mbit/s SFP+

10GBase-BX, WDM Bi-Directional, SFP+, LC, TX: 1330 nm, RX: 1270 nm, 57 x 14 x 12 mm

Key Features

• Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
• Single mode SFP+ LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
• Compatible with switches with 10G ports like SG3428X and SG3452X

Description

The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.

Specifications

Performance
SFP transceiver type	Fiber optic
Tx wavelength (max)	1330 nm
Rx wavelength (max)	1270 nm
Digital Diagnostics Monitoring (DDM)	Yes
Interface type	SFP+
Maximum data transfer rate	10312 Mbit/s
Fiber optic connector	LC (UPC)
Networking standards	IEEE 802.3ae
Maximum transfer distance	10000 m
Fiber cable diameters supported (core/cladding)	9/125 µm
Single-mode fiber (SMF) supported	Yes
Product colour	Silver
Hot-swap	Yes
Features
Product colour	Silver
Hot-swap	Yes
Power
Input voltage	3.3 V
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Network
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10312 Mbit/s
Fiber optic connector	LC (UPC)
Networking standards	IEEE 802.3ae
Weight & dimensions
Width	57 mm
Depth	14 mm
Height	12 mm
Packaging content
Manual	Yes
Quantity per pack	1 pc(s)
Packaging data
Manual	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Logistics data
Quantity per pack	1 pc(s)
