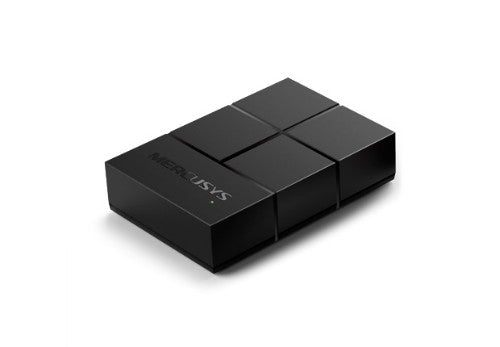

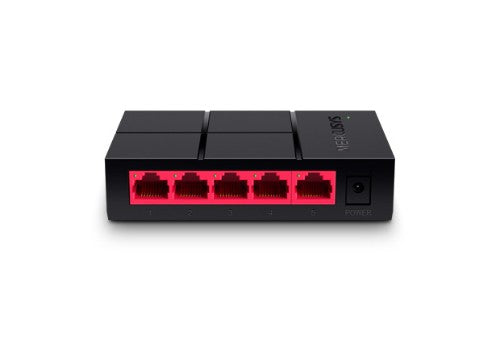

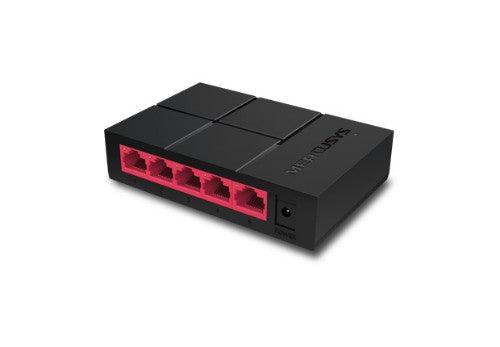

Mercusys 5-Port 10/100/1,000 Mbps Desktop Switch

5x RJ-45, 10/100/1000 Mbps, 9 KB Jumbo, 512 Kbit, 105 x 70 x 24.9 mm

Key Features

• Five 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
• Easily wired network expansion
• Compact design for flexible arrangement
• Plug and play setup, no configuration required
• Green Ethernet technology saves power by up to 82%

Description

More Efficient Transmission
5-Port 10/100/1000 Mbps Desktop Switch

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS105G sits anywhere in your home without taking up too much.

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105G provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Half duplex	Yes
Data transmission
Jumbo frames	9000
Jumbo frames support	Yes
Packet buffer memory	0.512 MB
Design
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Activity, Power
Power
Power supply included	Yes
Input voltage	5 V
Input current	0.6 A
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Width	105 mm
Depth	70 mm
Height	24.9 mm
Packaging content
Quick start guide	Yes
Packaging data
Package width	110 mm
Package depth	90 mm
Package height	60 mm
Package weight	200 g
Quick start guide	Yes
Performance
Stackable	No
Packet buffer memory	0.512 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Other features
Input voltage	5 V
Logistics data
Harmonized System (HS) code	85176990
