Ubiquiti UniFi Flex Mini 2.5G Managed 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop White

5x 1/2.5 GbE RJ45, 25 Gbps, 18.6 Mpps, 12.5 Gbps throughput, DC 5V/1A/5W, PoE 44-57V/6.4W, -20 - 45°C, 10 - 90% humidity, 117.1 x 90 x 21.2 mm, 206 g

Key Features

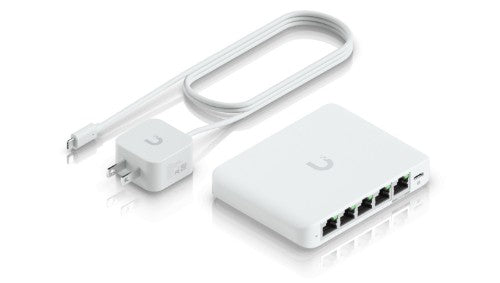

• Optional powering with included 5V, 1A USB-C adapter
• Ethernet In-Band
• Certifications CE, FCC, IC

Description

Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.

Specifications

Management features
Reset button	Yes
Switch type	Managed
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	USB
2.5G Ethernet (copper) ports quantity	5
USB Type-C ports quantity	1
Copper ethernet cabling technology	2.5GBASE-T
Network
Copper ethernet cabling technology	2.5GBASE-T
Rate limiting	Yes
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Data transmission
Switching capacity	25 Gbit/s
Jumbo frames support	Yes
Forwarding rate	18.6 Mpps
Throughput	12.5 Gbit/s
Multicast features
Multicast support	Yes
Design
Reset button	Yes
Product colour	White
Form factor	Desktop
LED indicators	Activity, Power, Progress
Housing material	Polycarbonate (PC)
Certification	CE, FCC, IC
Performance
Minimum system requirements	UniFi Network Version 8.4.62 and later
Power
Power plug type	Type A
Power consumption (max)	5 W
Power supply included	Yes
Input current	1 A
DC input voltage	5 V
Power source	AC/DC/PoE
Power connector	USB
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	6.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	57 V
Other features
Networking features	STP / RSTP with priorities and port-level disable, Egress rate limit
Operational conditions
Operating temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	117.1 mm
Depth	90 mm
Height	21.2 mm
Weight	206 g
Packaging data
AC adapter included	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Certification	CE, FCC, IC
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
System requirements
Minimum system requirements	UniFi Network Version 8.4.62 and later
Packaging content
AC adapter included	Yes
