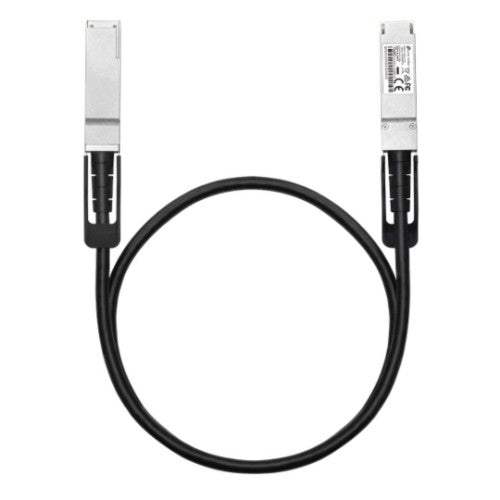

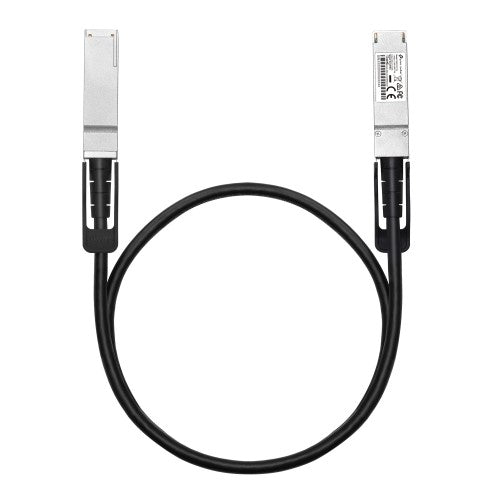

TP-Link Omada SM9220-1M InfiniBand/fibre optic cable QSFP28 Twinax Black

Omada 1 Meter 100G QSFP28 Direct Attach Cable, 30AWG, 33 mm Bend Radius, Black

Key Features

• 100 Gbps data transmission
• QSFP28 connector on both sides
• Up to 1 m transmission distance
• Wide operating temperature
• Hot Swappable

Description

SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.

Specifications

Features
Cable length	1 m
Connector 1	QSFP28
Connector 2	QSFP28
Cable type	Twinax
Jacket material	Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC)
Data transfer rate	100 Gbit/s
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet
Product colour	Black
Connector 2 gender	Male
Connector 1 gender	Male
Plug and Play	Yes
Conductor material	Copper
AWG wire size	30
Cable shape	Round
Bending radius	3.3 cm
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Bending radius	3.3 cm
Cable length	1 m
Packaging content
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC)
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Other features
Networking standards	IEEE 802.3, IEEE 802.3ba, IEEE 802.3bj
