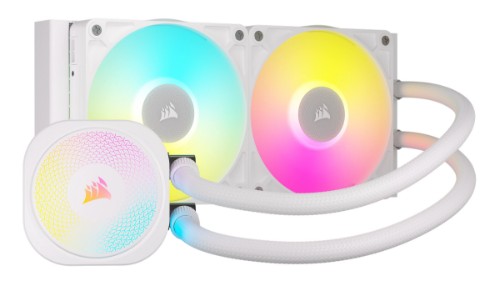

Corsair iCUE LINK TITAN RX RGB Processor All-in-one liquid cooler 12 cm White 1 pc(s)

240 mm, LGA 1851/1700/AM5/AM4, 300-2100 RPM, RGB

Key Features

• Extreme cooling performance with streamlined iCUE LINK connectivity
• FlowDrive cooling engine with three-phase motor for peak thermal efficiency
• Two high-performance RX120 RGB fans
• 20 RGB LEDs on the pump plus eight per fan create dynamic lighting
• Personalize your cooler with tool-free CapSwap modules (sold separately)

Description

IT'S COOLER AT THE TOP
POWERFUL AND EFFICIENT ALL-IN-ONE CPU COOLING

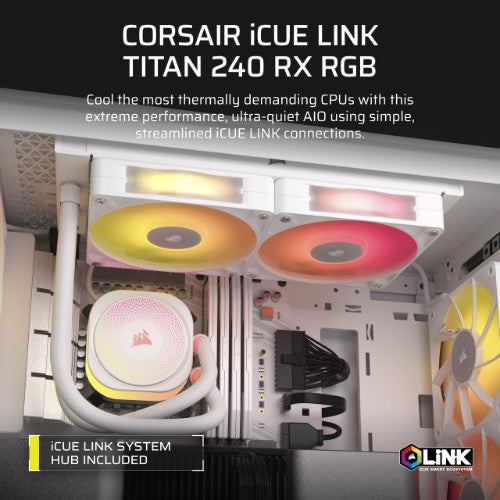

For cutting-edge systems that need to get the most out their CPUs, the TITAN RX RGB towers above the competition. Thousands of hours of in-house engineering culminate in a CPU cooler that combines unparalleled performance, impressively quiet acoustics, and simplified iCUE LINK connections.

PERFORMANCE WHERE IT MATTERS
PEAK COOLING POWER
Push airflow through radiators like never before at low, medium, and high speeds. RX Series fans deliver high airflow and static pressure, while keeping noise as low as possible.

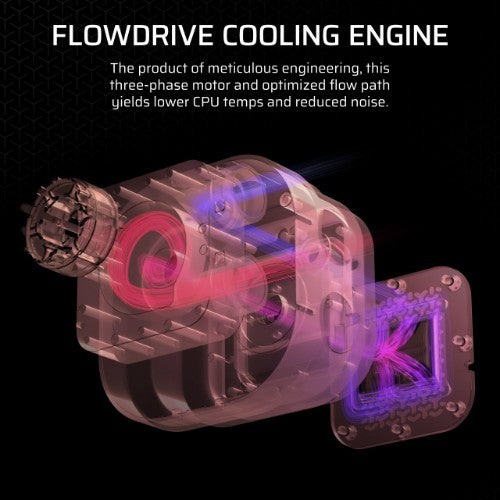

FLOWDRIVE COOLING ENGINE

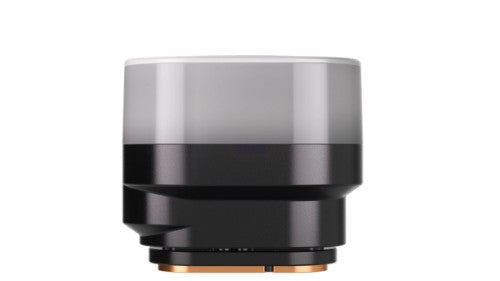

Designed in-house by CORSAIR's expert engineers, the pump is powered by a three-phase motor with a higher flow rate and even lower noise levels than its predecessors. Add to that a precision-engineered cold plate surface profile that maximizes contact with your CPU’s IHS, and you have a recipe for consistently lower temperatures.

MAKE IT PERSONAL
CAPSWAP MODULAR DESIGN
It's never been easier to change the look or functionality of your AIO. Switch the default pump cap with any CapSwap module (sold separately) in seconds, completely tool-free, and it's almost like a brand-new cooler.

EASY INSTALLATION FOR INTEL AND AMD CPUs
Includes mounting brackets and backplates for fast installation on a wide range of socket types, including modern Intel® LGA 1851/1700 and AMD® AM5/AM4.

KEEPING UP APPEARANCES
YOUR COOLER HAS NEVER LOOKED COOLER

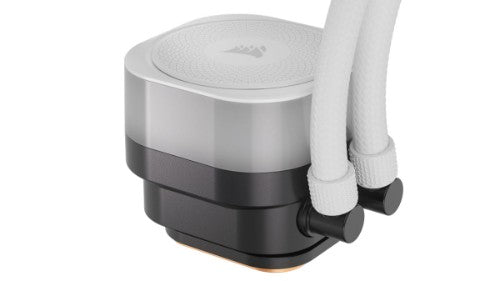

PUMP CAP
The TITAN RX RGB’s unique pump cap design shows off the lighting from 20 individually addressable RGB LEDs around the pump.

DETACHABLE SIDE PLATES
Each RX RGB fan comes with a pair of decorative side plates, providing a choice between a translucent window or a CORSAIR wordmark.

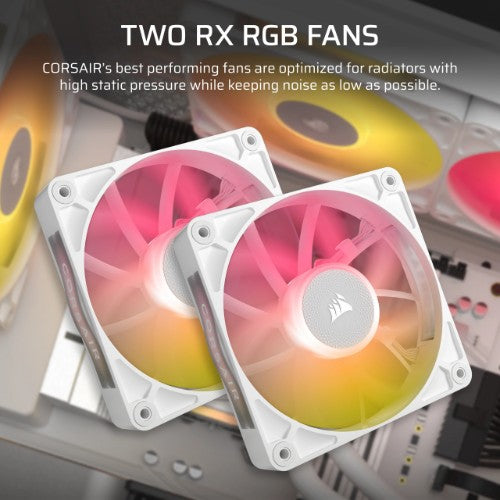

FAN LIGHTING
Eight individually addressable RGB LEDs per fan display mesmerizing effects, easily synchronized with your pump lighting.

EXTREME PERFORMANCE THERMAL PASTE
For top-notch performance, every detail in the heat transfer and dissipation chain matters.

All TITAN RX RGB CPU blocks include pre-applied CORSAIR XTM70 Extreme Performance Thermal Paste for maximum heat transfer from your high-end processor to the cooler cold plate.

GET STARTED FAST WITH iCUE
See how easy it is to install your new CORSAIR components and set things up in iCUE software.

Specifications

Performance
Suitable location	Processor
Type	All-in-one liquid cooler
Rotational speed (min)	300 RPM
Rotational speed (max)	2100 RPM
Fan diameter	12 cm
Supported processor sockets	LGA 1700, LGA 1851, Socket AM4, Socket AM5
Minimum airflow (imperial)	10.4 cfm
Maximum airflow	73.5 cfm
Minimum air pressure	0.12 mmH2O
Maximum air pressure	4.33 mmH2O
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Design
Number of fans	2 fan(s)
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Radiator material	Aluminum
Base plate material	Copper
Weight & dimensions
Width	334 mm
Depth	456 mm
Height	444 mm
Weight	1.55 kg
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Radiator width	27.7 cm
Radiator depth	12 cm
Radiator height	2.7 cm
Tube length	40 cm
Technical details
Illumination LED	Yes
Warranty period	6 year(s)
Packaging data
Package type	Box

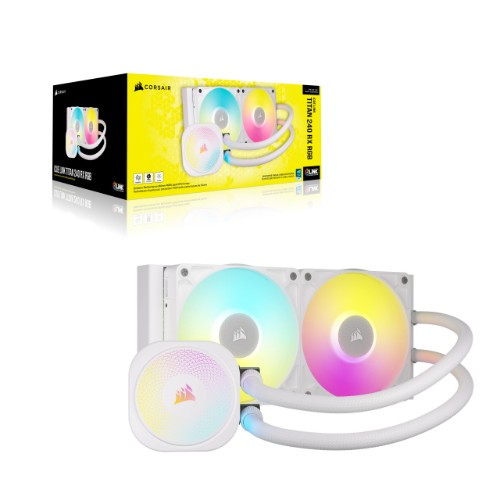

Packaging content
Package type	Box

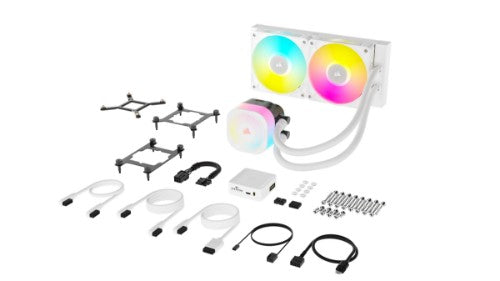

Mounting kit	Yes
CPU bracket(s)	Yes
