Ubiquiti UNAS Pro NAS Rack (2U) Cortex-A Cortex-A57 8 GB Grey

Quad-Core ARM Cortex-A57 at 1.7 GHz, 8 GB, 2U, 7x (7) 2.5/3.5" HDD / SSD, 10G SFP+, GbE RJ4, 1.3" touchscreen

Key Features

• (7) 2.5/3.5" HDD / SSD support
• (1) 10G SFP+ uplink and (1) GbE RJ45 port
• Data protection with RAID storage technology
• UniFi Power Backup ready
• 1.3" touchscreen for management

Description

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
RAID support	Yes
Storage drive sizes supported	2.5,3.5"
Processor
Processor manufacturer	ARM
Processor architecture	ARM Cortex-A57
Processor family	Cortex-A
Processor model	Cortex-A57
Processor frequency	1.7 GHz
Processor cores	4
Memory
Internal memory	8 GB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ports & interfaces
USB port	No
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP+
Design
Chassis type	Rack (2U)
Product colour	Grey
Cooling type	Active
Housing material	Steel
Number of fans	2 fan(s)
LED indicators	Status
Built-in display	Yes
Display type	LCM
Performance
Type	NAS
Backup function	Yes
Reset button	Yes
Power
Power consumption (max)	160 W
Power supply location	Built-in
Power supply unit (PSU) capacity	200 W
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Weight & dimensions
Width	442 mm
Depth	325 mm
Height	87 mm
Weight	9.2 kg
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Packaging content

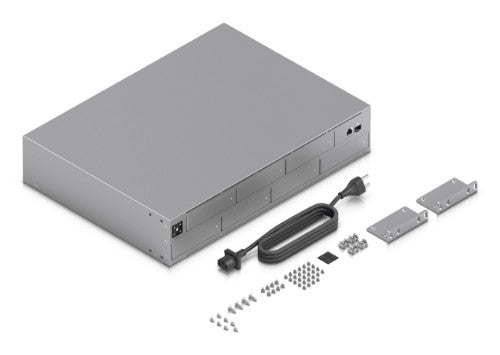

Rack mount kit	Yes
Cables included	Power
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Other features
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
