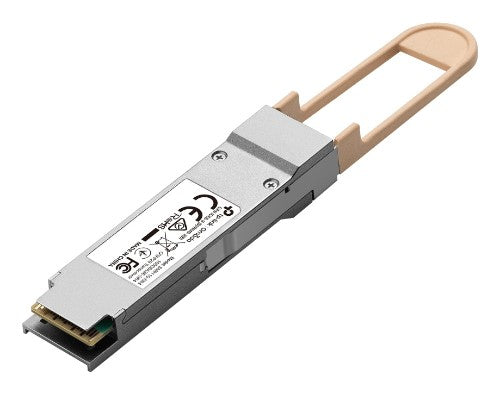

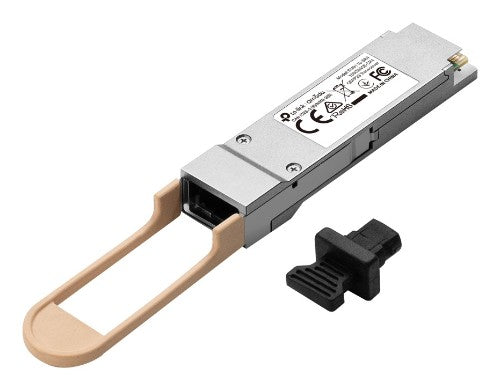

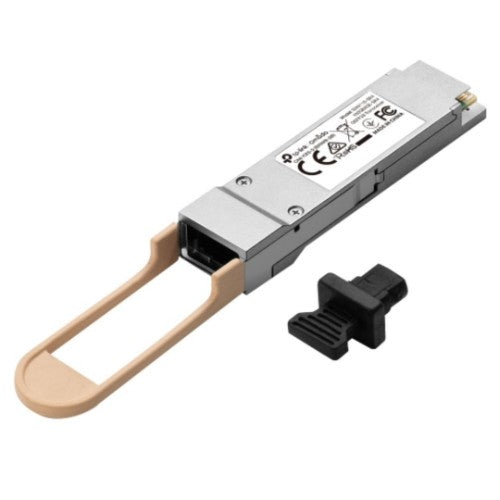

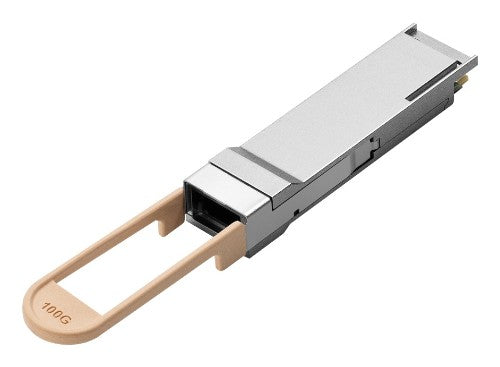

TP-Link Omada SM9110-SR4 network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm

QSFP28, 100GBASE/40GBASE, SR4, MTP/MPO-12, 850 nm, 3.3v, PIN, 50/125um MMF, 0°C to 70°C

Key Features

• 100GBASE-SR4 multi-mode QSFP28 Transceiver
• Supports Digital Diagnostic Monitoring (DDM)
• Up to 100 m transmission distance
• Hot-Pluggable with maximum flexibility
• Wide operating temperature
• Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)

Description

The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Interface type	QSFP28
Maximum data transfer rate	100000 Mbit/s
Fiber optic connector	MPO-12, MTP
Networking standards	IEEE 802.3ba, IEEE 802.3bm
Maximum transfer distance	150 m
Wavelength	850 nm
Fiber cable diameters supported (core/cladding)	50/125 µm
Tx power (min)	-8.4 dBmW
Tx power (max)	2.4 dBmW
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	Yes
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet
SFP transceiver standard	SR4
Fiber ethernet cabling technology	40GBASE, 100GBASE
Country of origin	China
Product colour	Metallic
Plug and Play	Yes
Hot-swap	Yes
Features
Product colour	Metallic
Plug and Play	Yes
Hot-swap	Yes
Form factor	QSFP28
Country of origin	China
Certification	QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Power
Input voltage	3.3 V
Certificates
Certification	QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Network
SFP transceiver type	Fiber optic
Interface type	QSFP28
Maximum data transfer rate	100000 Mbit/s
Fiber optic connector	MPO-12, MTP
Networking standards	IEEE 802.3ba, IEEE 802.3bm
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet
Weight & dimensions
Width	124 mm
Depth	18.4 mm
Height	11.7 mm
Packaging content
Quantity per pack	1 pc(s)
User guide	Yes
Packaging data
User guide	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
