TP-LINK

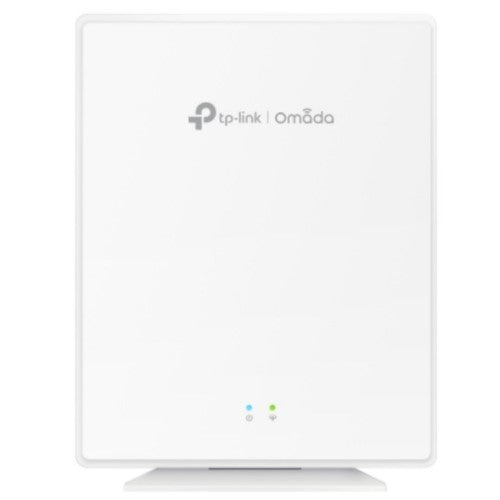

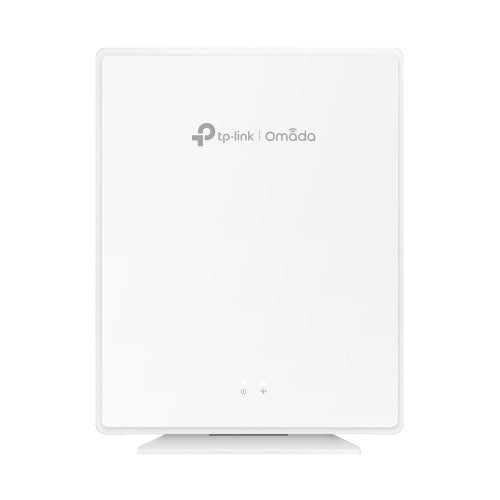

TP-Link Omada EAP610GP-DESKTOP wireless access point 1201 Mbit/s White Power over Ethernet (PoE)
Regular price
$247.56 AUD
Regular price
Sale price
$247.56 AUD
Unit price
per
Use the contact form below to check availability.
1x GPON, 1x FXS, 4x Gigabit RJ-45, 53.5V/0.81A DC, 175 x 140 x 33 mm
• Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
• 1× GPON Port for High-Speed and Ultra-Range Access
• Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
• One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
• Easy Use: One-Click Pairing and Automatic Adoption
• Smart O&M: PPSK△ and Multiple Portals§
• High Flexibility: Support both desktop and wall mounting setups
• Centralized Management: Integrates with the Unified Optical Solution
Key Features
- Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
- 1× GPON Port for High-Speed and Ultra-Range Access
- Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
- One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
- VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
- Easy Use: One-Click Pairing and Automatic Adoption
- Smart O&M: PPSK△ and Multiple Portals§
- High Flexibility: Support both desktop and wall mounting setups
- Centralized Management: Integrates with the Unified Optical Solution
Description
TP-Link EAP610GP-Desktop Omada AX1800 Wi-Fi 6 Desktop GPON Access Point• Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
• 1× GPON Port for High-Speed and Ultra-Range Access
• Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
• One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
• Easy Use: One-Click Pairing and Automatic Adoption
• Smart O&M: PPSK△ and Multiple Portals§
• High Flexibility: Support both desktop and wall mounting setups
• Centralized Management: Integrates with the Unified Optical Solution
Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Syslog | Yes |
| Maximum data transfer rate | 1201 Mbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| Spread spectrum method | OFDMA |
| Number of users | 120 user(s) |
| Web-based management | Yes |
| VLAN support | Yes |
| Reset button | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channel bandwidth | 80 MHz |
| Certification | CE, FCC, RoHS, IC |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Maximum data transfer rate | 1201 Mbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| Spread spectrum method | OFDMA |
| Number of users | 120 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channel bandwidth | 80 MHz |
| Transmitting power (FCC) | 25 dBm |
| Transmitting power (CE) | 20 dBm |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| BeamForming | Yes |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast on/off |
| Management features | |
| Syslog | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
| Power consumption (typical) | 17.3 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 53.5 V |
| Design | |
| Placement | Desk, Wall |
| Reset button | Yes |
| LED indicators | Power |
| Product colour | White |
| Certification | CE, FCC, RoHS, IC |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certificates | |
| Certification | CE, FCC, RoHS, IC |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 175 mm |
| Depth | 140 mm |
| Height | 33 mm |
| Weight | 492 g |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
