TP-LINK

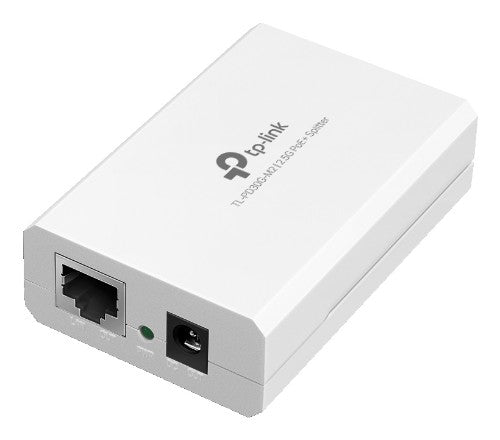

TP-Link TL-PD30G-M2 network splitter Power over Ethernet (PoE) White
Regular price
$26.25 AUD
Regular price
Sale price
$26.25 AUD
Unit price
per
Use the contact form below to check availability.
2.5G PoE+, IEEE 802.3af/at, Cat: 3,4,5,5e,6, 12VDC, 9VDC or 5VDC, -5 - 45°C, White, 80.8 x 54 x 24 mm
This splitter delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.
Power over Ethernet, Flexible Network Deployment
Work with all lEEE 802.3af/at compliant PoE+ switches or injectors to deliver optional 12V/9V/5V DC triple output to a variety of Ethernet-enabled devices.
Plug and Play
Work with PoE+ Switch
TL-PD30G-M2 receives the PoE power supply from the front-end device and outputs it as direct current to power the back-end device.
Work with PoE+ Injector
TL-PD30G-M2 receives the PoE power supply from the front-end device and outputs it as direct current to power the back-end device.
Key Features
- 2×2.5G Ports
- Powered by PoE+/PoE
- 100 m PoE+
- Optional12/9/5VDC Output
- Plug and Play
Description
2.5G Super-fast Speeds without Changing CablesThis splitter delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.
Power over Ethernet, Flexible Network Deployment
Work with all lEEE 802.3af/at compliant PoE+ switches or injectors to deliver optional 12V/9V/5V DC triple output to a variety of Ethernet-enabled devices.
Plug and Play
Work with PoE+ Switch
TL-PD30G-M2 receives the PoE power supply from the front-end device and outputs it as direct current to power the back-end device.
Work with PoE+ Injector
TL-PD30G-M2 receives the PoE power supply from the front-end device and outputs it as direct current to power the back-end device.
Specifications
| Features | |
|---|---|
| LED indicators | Power |
| Cable standard | Cat5/Cat5e/Cat6 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Product colour | White |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| DC-out jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), UKCA |
| Weight & dimensions | |
| Width | 54 mm |
| Height | 24 mm |
| Depth | 80.8 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Power |
| Quantity per pack | 1 pc(s) |
| Network | |
| Cable standard | Cat5/Cat5e/Cat6 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Performance | |
| Cable standard | Cat5/Cat5e/Cat6 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Design | |
| LED indicators | Power |
| Product colour | White |
| Power | |
| Output current (12V) | 2 A |
| Power over Ethernet (PoE) | Yes |
| Technical details | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), UKCA |
| Colour | |
| Product colour | White |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
