TP-Link EAP725-Wall 5012 Mbit/s White Power over Ethernet (PoE)

BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz), 2× 2.5G Ethernet, 2× Gigabit Ethernet, 802.3at/bt PoE, 143 × 86 × 40 mm

Key Features

• BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz)

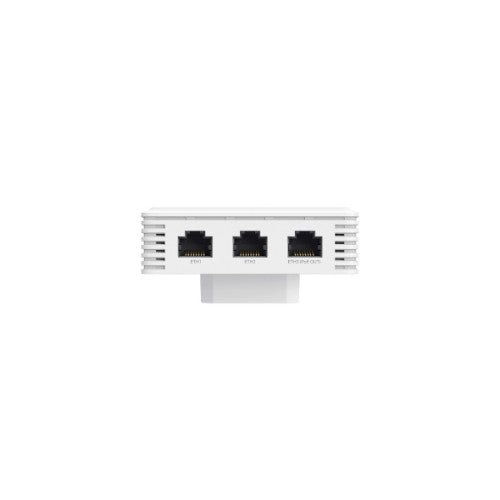

• 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports
• 160 MHz bandwidth enables many more simultaneous transmissions
• Multi-RUs ensure the high performance of your network
• Advanced Functions: Centralized management, Mesh, and Seamless Roaming

Description

BE3600 WiFi 7 Wall
Plate Access Point for
Ultra-Fast Connectivity

Optimized Wired Performance
with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.

Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	5012 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Number of users	250 user(s)
VLAN support	Yes
Reset button	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Certification	FCC, RoHS
Airtime Fairness (ATF)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	5012 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Number of users	250 user(s)
VLAN support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Airtime Fairness (ATF)	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	2882 Mbit/s
BeamForming	Yes
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Security
Number of SSID supported	16
MAC address filtering	Yes
Access Control List (ACL)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
Power
Power consumption (max)	17 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Reset button	Yes
LED indicators	Yes
Product colour	White
Certification	FCC, RoHS
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5 dBi
Certificates
Certification	FCC, RoHS
Software
Access Control List (ACL)	Yes
Weight & dimensions
Width	86 mm
Depth	40 mm
Height	143 mm
Packaging data
Mounting kit	Yes
Package type	Box
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Package type	Box
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
System requirements
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Logistics data
Quantity per pack	1 pc(s)
