Ubiquiti UniFi Pro HD 24 Managed L2/L3 2.5G Ethernet (100/1000/2500) 1U Grey

230 Gbps, 50W, 22x 2.5/1 GbE, 100/10 MbE RJ45, 2x 10/5/2.5/1 GbE, 100 MbE RJ45, 4x 10/1G SFP+, SGCC steel, 442.4 x 285 x 44 mm

Key Features

• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
• (22) 2.5 GbE, (2) 10 GbE ports
• (4) 10G SFP+ ports
• DC power backup ready

Description

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.

Specifications

Management features
Reset button	Yes
Switch layer	L2/L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	22
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Power connector	AC/DC
2.5G Ethernet (copper) ports quantity	22
10G Ethernet (copper) ports quantity	2
Network
Networking standards	IEEE 802.1x
Number of VLANs	1000
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Voice VLAN
IPv4 routes	12000
IGMP snooping	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	230 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	2 MB
Static route	Yes
Forwarding rate	171.12 Mpps
Throughput	115 Gbit/s
Number of VLANs	1000
Security
Loop protection	Yes
IGMP snooping	Yes
DHCP features	DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Design
Reset button	Yes
Rack mounting	Yes
Stackable	Yes
Display type	LCM
Product colour	Grey
Form factor	1U
LED indicators	Link, Speed, Status
Housing material	SGCC
Power
Power consumption (max)	60 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Power source	AC/DC
Power connector	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	102.36 BTU/h
Virtual LAN features
Number of VLANs	1000
VLAN support	Yes
Virtual LAN features	Voice VLAN
Weight & dimensions
Width	442.4 mm
Depth	285 mm
Height	44 mm
Weight	4.2 kg

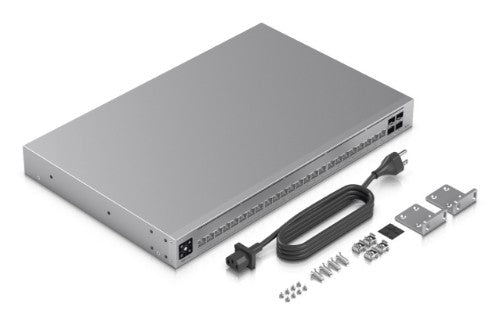

Packaging content
Rack mount kit	Yes
Cables included	Power
Performance
Stackable	Yes
Packet buffer memory	2 MB
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Packaging data
Rack mount kit	Yes
Cables included	Power
