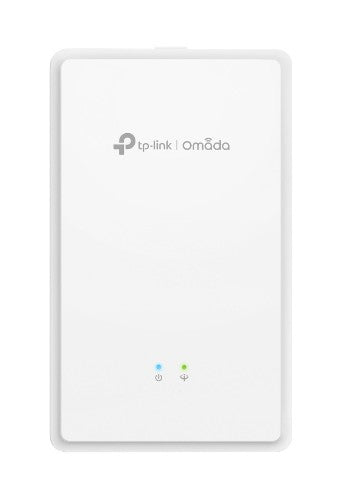

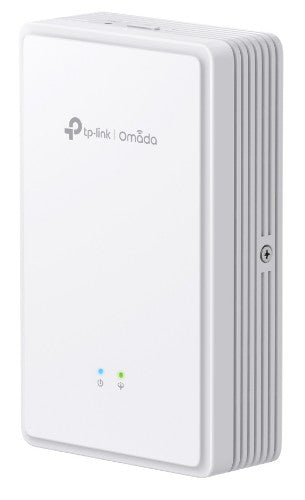

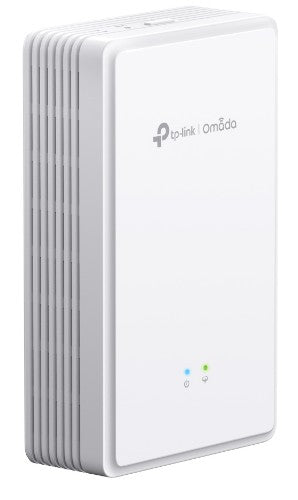

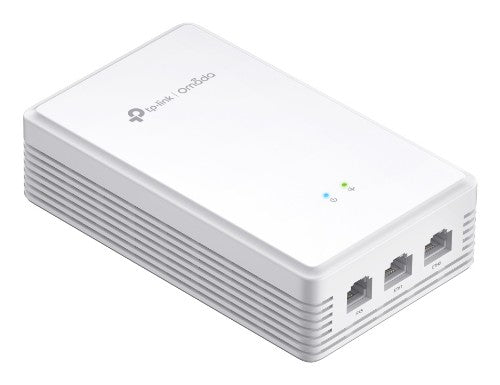

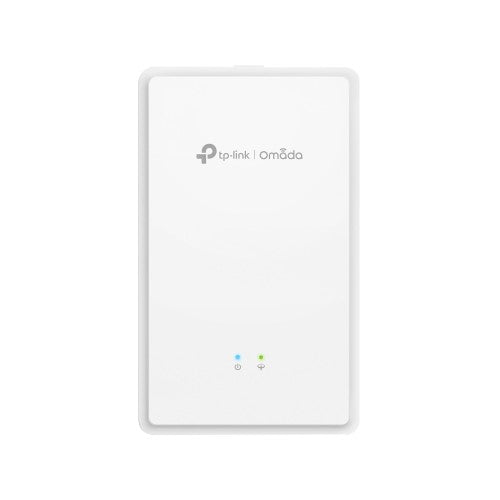

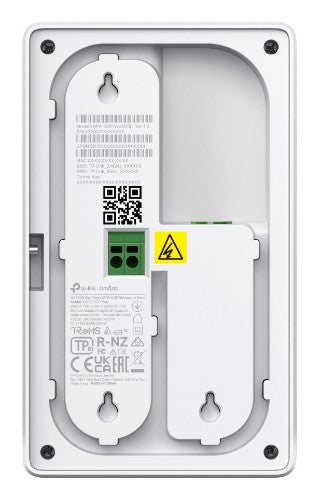

TP-Link Omada EAP625GP-WALL wireless access point 1201 Mbit/s White Power over Ethernet (PoE)

GPON, RJ-45, Wi-Fi 6, SC-APC

Key Features

• Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†

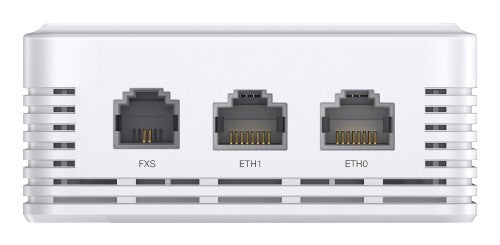

• Multiple Ports: 1× GPON port for high-speed, ultra-range access and 2× Gigabit RJ45 ports (one supporting 802.3af PoE out) for flexible deployment
• One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
• Easy Use: One-Click Pairing and Automatic Adoption
• Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management

Description

Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for PtMP (point-to-multipoint) environments like hotels and MDUs.

One Fiber, Multiple Services
Connect a fiber optic cable to the EAP625GP-Wall to connect cameras, PCs, and TVs to carry data, voice, wired and wireless internet, HD video, and VoIP services.

Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.
Omada Mesh and 802.11k/v roaming ensure a consistently smooth and reliable connection.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1201 Mbit/s
Frequency band	2.4 - 5 GHz
Number of users	120 user(s)
Web-based management	Yes
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Band steering	Yes
Airtime Fairness (ATF)	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1201 Mbit/s
Frequency band	2.4 - 5 GHz
Number of users	120 user(s)
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Band steering	Yes
Airtime Fairness (ATF)	Yes
Coverage area	50 m²
Wireless meshing	Yes
Security
Number of SSID supported	16
Security algorithms	WPA, WPA2, WPA3
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs, SSID broadcast, SSID broadcast on/off
Management features
Web-based management	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Design
Placement	Wall
Reset button	Yes
Product colour	White
Weight & dimensions
Width	143 mm
Depth	86 mm
Height	44.6 mm
Weight	350 g
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
