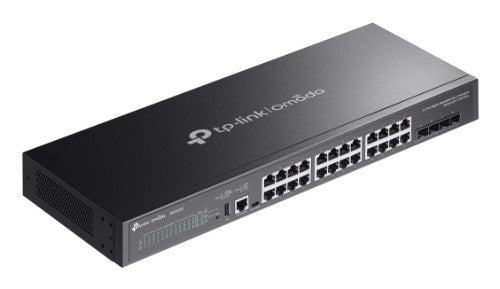

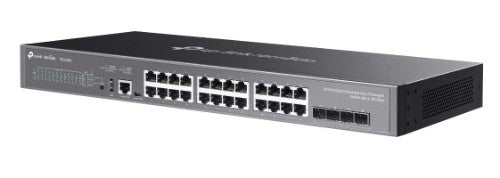

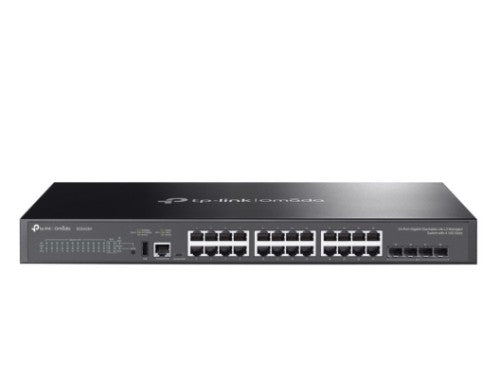

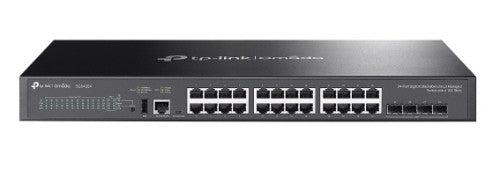

TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black

SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots

Key Features

• 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
• 128 Gbps switching capacity per unit
• Physical stacking up to 4 units for built-in redundancy and performance
• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
• Security strategies: ACL, Port Security, DoS Defend, 802.1X
• ERPS supports rapid protection and recovery in a ring topology
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

Description

What This Product Does
Omada SG5428X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 24× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428X offers a reliable networking solution for SMEs, and ISPs.

High-speed Connectivity and Powerful Stacking
24× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Specifications

Management features
ARP inspection	Yes
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
Gigabit Ethernet (copper) ports quantity	24
USB 2.0 ports quantity	1
USB Type-C ports quantity	1
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs	4000
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	12 MB
Forwarding rate	95.23 Mpps
Number of VLANs	4000
Security
IP-MAC-Port binding	Yes
Static port security	Yes
SSH/SSL support	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
LED indicators	Yes
Performance
Physical stacking (units)	4
Processor frequency	1200 MHz
Memory type	DRAM
Internal memory	2000 MB
Flash memory	512 MB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	519.543 h
Processor manufacturer	ARM
Telnet	Yes
Built-in processor	Yes
Fanless	Yes
Stackable	Yes
Packet buffer memory	12 MB
Power
Power consumption (max)	19.6 W
Power supply included	Yes
Surge protection voltage	6 kV
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Surge protection	Yes
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Management level	4
Bandwidth	64 Gbit/s
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	66.87 BTU/h
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Technical details
Telnet	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
