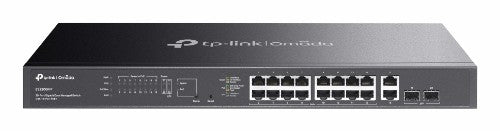

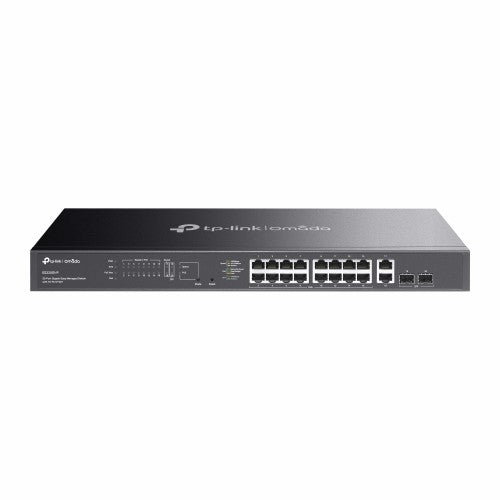

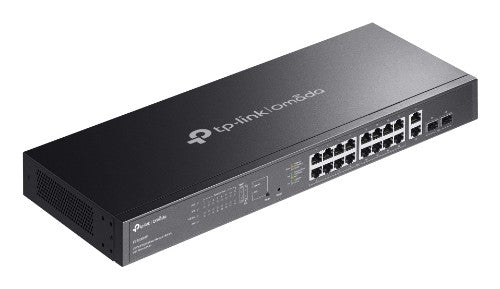

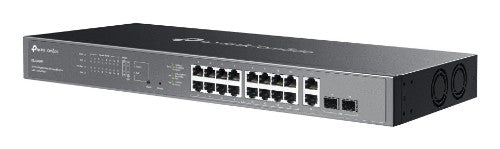

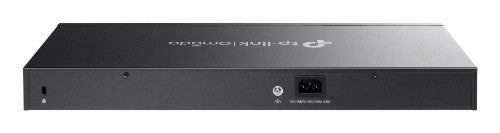

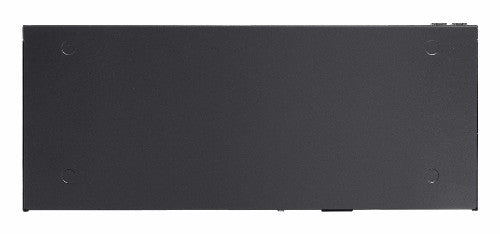

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

Key Features

• 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 2× Gigabit RJ45 port, 2× Gigabit SFP port
• 250W Power Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Durable metal casing and rack-mountable design

Description

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Unified static configuration	Yes
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	18
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs	32
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Fast leave	Yes
Zero Touch Provisioning (ZTP)	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	15000
MAC address table	8000 entries
Switching capacity	40 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	4 MB
Forwarding rate	29.76 Mpps
Number of VLANs	32
Security
Loop protection	Yes
IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
DHCP features	DHCP client
Design
Rack mounting	Yes
Stackable	No
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)
Performance
Noise level	41.5 dB
Flash memory	64 MB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	310550.7 h
Stackable	No
Packet buffer memory	4 MB
Auto-negotiation	Yes
Power
Power consumption (max)	289.7 W
Power supply included	Yes
Surge protection voltage	6 kV
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Surge protection	Yes
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet (PoE) type supported	PoE+
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	984.88 BTU/h
Virtual LAN features
Number of VLANs	32
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Packaging data
Package type	Box
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
