TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Omada 8-Port Gigabit Easy Managed Switch

Key Features

• 8× 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
• Automatic Loop Prevention and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design

Description

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Unified static configuration	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Network
Networking standards	IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
Number of VLANs	32
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Fast leave	Yes
Zero Touch Provisioning (ZTP)	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	15000
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	4 MB
Forwarding rate	11.9 Mpps
Number of VLANs	32
Security
Loop protection	Yes
IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
DHCP features	DHCP client
Design

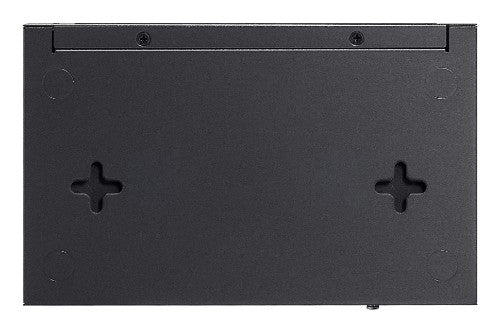

Wall mountable	Yes
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Yes
Performance
Flash memory	64 MB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	1141726 h
Fanless	Yes
Stackable	No
Packet buffer memory	4 MB
Auto-negotiation	Yes
Power
Power consumption (max)	2.7 W
Power supply included	Yes
Surge protection voltage	6 kV
Input current	0.6 A
DC input voltage	5 V
Surge protection	Yes
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	9.09 BTU/h
Virtual LAN features
Number of VLANs	32
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width	158 mm
Depth	100.7 mm
Height	25.4 mm
Packaging content
User guide	Yes
AC adapter included	Yes
Packaging data
AC adapter included	Yes
Package type	Box
User guide	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
