Ubiquiti UA-G3-W access control reader Basic access control reader White

BLE 4.1, NFC, PoE, 1x 10/100 MbE RJ45 port, 48V DC, 5W, Proximity sensor, Polycarbonate, glass, IP55, white

Key Features

• Unlock with an NFC card, UniFi Identity mobile app, or Touch Pass
• Supports hand-wave unlocking as a request-to-exit device
• Provides entry and exit greeting messages
• IP55-rated weather resistance (-30 to 45°C)
• Connects to UniFi Access Hub via PoE

Description

Compact third-generation access reader with Apple Touch Pass support.

Specifications

Technical details
Ethernet LAN data rates	10,100,1000 Mbit/s
Type	Basic access control reader
Authentication type	Access chip/card
Fingerprint reader	No
Access code reader	No
Access chip/card reader	Yes
Product colour	White
Housing material	Glass, Polycarbonate (PC)
International Protection (IP) code	IP55
Near Field Communication (NFC)	Yes
LED indicators	Status
Bluetooth version	4.1
Bluetooth	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), UL
Display
Built-in display	No
Camera
Front camera	No
Performance
Built-in speaker(s)	Yes
Number of speakers	1
Speaker power	0.7 W
Ports & interfaces
Ethernet LAN data rates	10,100,1000 Mbit/s
Near Field Communication (NFC)	Yes
Bluetooth version	4.1
Bluetooth	Yes
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	1
DC voltage range	48 V
Power consumption (max)	5 W
Weight & dimensions
Width	40 mm
Weight	82 g
Height	93 mm
Depth	36.5 mm
Packaging content

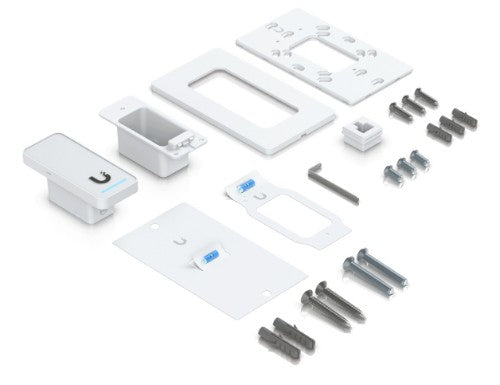

Mounting bracket(s) included	Yes
Operational conditions
Operating temperature (T-T)	-30 - 45 °C
Operating relative humidity (H-H)	5 - 90%
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	1
