ATEN UH3240-AT laptop dock/port replicator Wired USB Type-C Silver
Regular price
$180.00 AUD
Regular price
Sale price
$180.00 AUD
Unit price
per
Use the contact form below to check availability.
11-in-1 USB-C Multiport Dock with Power Pass-Through
The UH3240 is a multiport dock that can expand up to 11 devices via a single USB-C cable. The myriad functions are packed into one light, compact dock, as you can charge your device, up to 100W, while transferring data at 5 Gbps.
Dual 4K Display
Expand your professional versatility
Enjoy Impeccable Visual Quality
Optimize your screen resolution to befit the task at hand
Vivid & Sharp 8K Display
Enthralling visual indulgence of entertainment apex
100W Power Delivery with PD 3.0
Power on your devices for your multitasking needs
Key Features

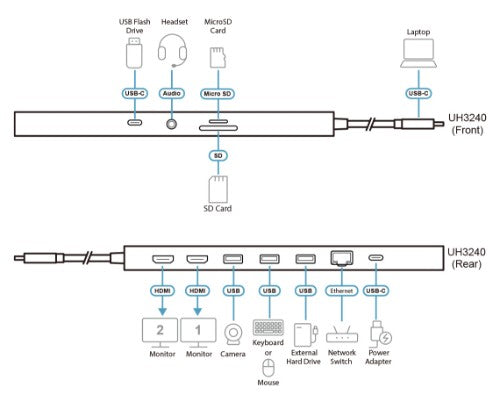

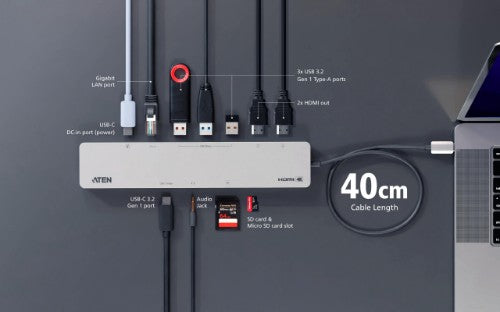

- A multiport dock with 11 essential ports – 2x HDMI, 2x USB-C (1 for power delivery & 1 for data transmission), 3x USB Type-A, 1x SD, 1x Micro SD,1x Ethernet, and 1x audio jack
- Supports up to 4K @ 120 Hz for single1 video output or 4K @ 60 Hz for dual video outputs2,3
- Supports USB PD 3.0 for charging up to 100W via USB-C PD power adapter4 – supports PD profile specifications of 5V, 9V, 12V, 15V, and 20V
- USB 3.2 Gen 1 compliant with data transfer rates up to 5 Gbps
Description
Transform your laptop into the ultimate workstation with unparalleled productivity.The UH3240 is a multiport dock that can expand up to 11 devices via a single USB-C cable. The myriad functions are packed into one light, compact dock, as you can charge your device, up to 100W, while transferring data at 5 Gbps.
Dual 4K Display
Expand your professional versatility
Enjoy Impeccable Visual Quality
Optimize your screen resolution to befit the task at hand
Vivid & Sharp 8K Display
Enthralling visual indulgence of entertainment apex
100W Power Delivery with PD 3.0
Power on your devices for your multitasking needs
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour | Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Maximum memory card size | 2 TB |
| HD type | 4K Ultra HD |
| Housing material | Aluminium |
| Maximum refresh rate | 60 Hz |
| Hub interfaces | 3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Maximum memory card size | 2 TB |
| Power | |
| Power source type | DC |
| Power supply type | DC |
| Power consumption (typical) | 18 W |
| Output voltage | 5 V |
| USB cable length | 0.4 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android, iOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 43 mm |
| Depth | 220 mm |
| Height | 16 mm |
| Weight | 180 g |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Silver |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Power supply type | DC |
| Cable length | 0.4 m |
