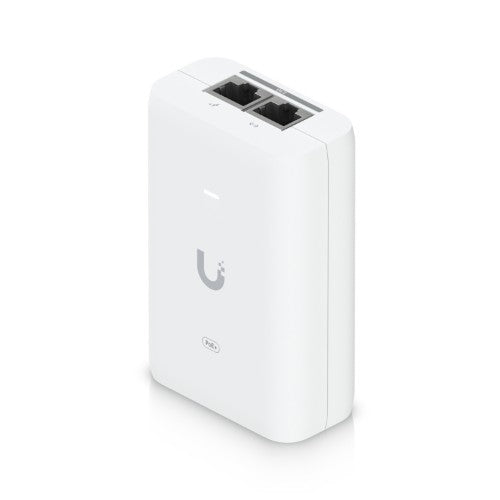

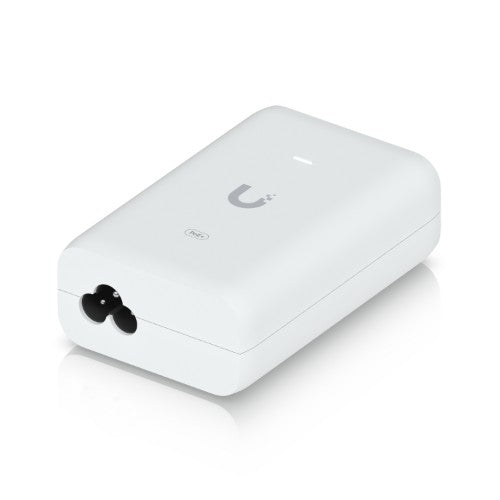

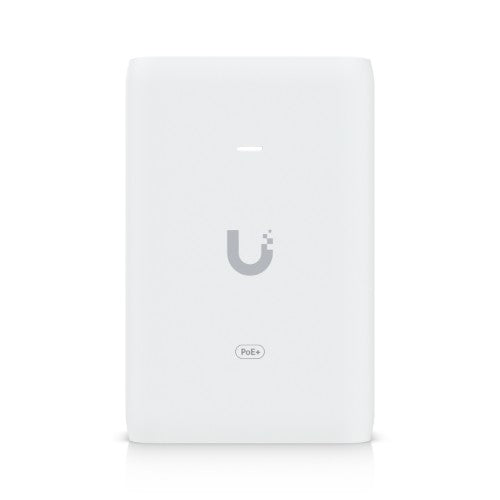

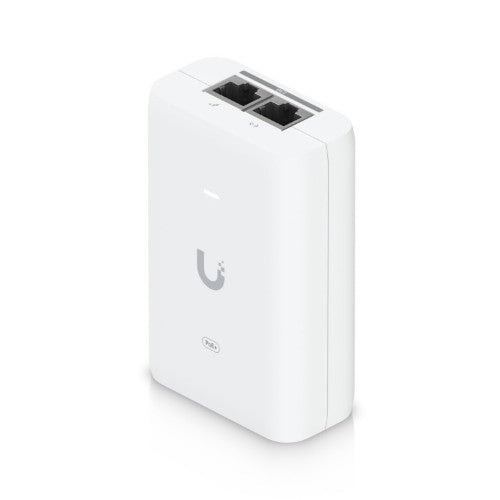

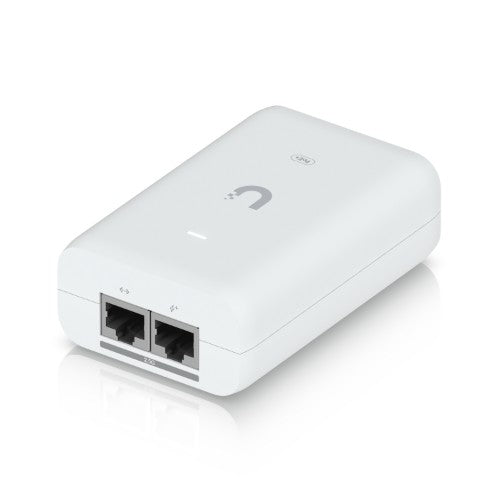

Ubiquiti UACC-PoE+-2.5G 2.5 Gigabit Ethernet 48 V

2.5G PoE+ Adapter (30W), 48V DC / 0.65A, 93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Key Features

• Delivers up to 30W of PoE+
• Surge, peak pulse, and overcurrent protection

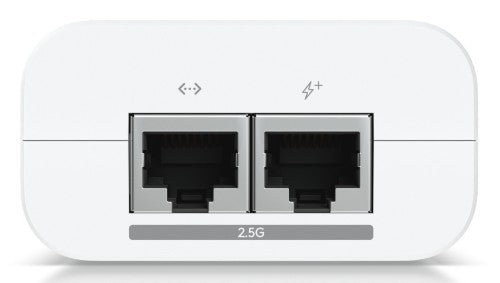

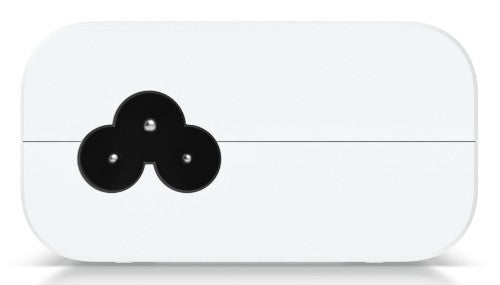

• Contains RJ45 data input, AC cable with earth ground, and PoE+ output
• LED indicator for status monitoring

Description

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Specifications

Network
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet
Power over Ethernet (PoE) voltage	48 V
Features
Wall mountable	Yes
Surge protection	Yes
Product colour	White
Power protection features	Over current, Peak pulse, Surge protection
LED indicators	Status
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Output current	0.65 A
Total Power over Ethernet (PoE) budget	30 W
Power over Ethernet (PoE) voltage	48 V
Input current	0.75 A
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Certificates
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Weight	156 g
Width	62 mm
Depth	35 mm
Height	93 mm
Packaging content
Number of products included	1 pc(s)
Technical details
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	32 - 104 °F
Number of products included	1 pc(s)
Input current	0.75 A
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
Indication
LED indicators	Status
