TP-Link TX35U WLAN 1201 Mbit/s

WiFi 6, USB 3.0, IEEE 802.11ax, 1201 Mbps, 2.4 - 5 GHz, 0 - 40℃, Black, 57.8 × 18 × 173.4 mm

Key Features

• Flexible Dual Band
• Dual High-Gain Antennas
• Ultra-Low Latency
• Refined Security

Description

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition.
Use of Wi-Fi 6 (802.11 ax), and features including OFDMA, MU-MIMO, and 1024-QAM require APs to also support the corresponding features.
Functionality of the adapter may be restricted on some operating systems and platforms. Please try to update the device's driver for feature compatibility.
Use of WPA3 requires APs to also support the corresponding feature.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

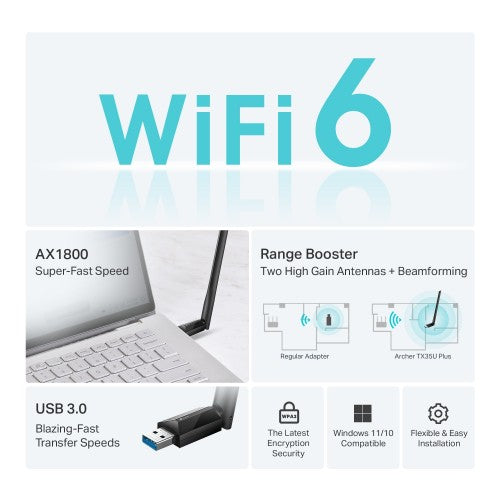

Lightning-Fast WiFi 6
Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)

Flexible Dual Band
Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands

Dual High-Gain Antennas
Connect from farther away with high gain antennas and Beamforming technology

Ultra-Low Latency
The combo of OFDMA and MU-MIMO ensures the most efficient Wi-Fi connection for your PC, reducing latency for faster speeds

SuperSpeed USB 3.0
Up to 10× faster transfer speeds than USB 2.0

Refined Security
Protect your personal data with the latest WPA3 encryption

Specifications

Ports & interfaces
Internal	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
USB connector form factor	Angled
Bandwidth
Maximum data transfer rate	1201 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
WLAN data transfer rates supported	11,54,300,574,867,1200 Mbit/s
Antenna
Antenna	Yes
Frequency range	2.4 - 5 GHz
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Maximum data transfer rate	1201 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation	1024-QAM, OFDMA
WLAN data transfer rates supported	11,54,300,574,867,1200 Mbit/s
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Frequency range	2.4 - 5 GHz
Bluetooth	No
MU-MIMO	Yes
Design
Internal	No
Product colour	Black
Antenna	Yes
LED indicators	Status
Transmitting power (CE)	17 dBm
Transmitting power (FCC)	19 dBm
Component for	PC/Laptop
Antenna design	External
Power
USB powered	Yes
System requirements
Windows operating systems supported	Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	57.8 mm
Depth	173.4 mm
Height	18 mm
Packaging data
Package type	Box
Quick installation guide	Yes
Packaging content
Quick installation guide	Yes
Packaging content	AX1800 High Gain Wireless USB Adapter
Package type	Box
Performance
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Windows operating systems supported	Windows 10, Windows 11
Other features
Bluetooth	No
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
