TP-Link Omada ER703WP-4G-Outdoor gateway/controller 10, 100, 1000 Mbit/s

4G, Nano SIM, 300Mbps D, 50Mbps U, 2.4/5GHz

Key Features

• 4G and Ethernet WAN Auto Backup with Load Balancing
• IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
• Centralized Management
• IP55 Weatherproofing

Description

All-in-one Device
Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.

Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.

Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.

Plug and Play

Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.

Centralized Management

Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.

Easy Installation

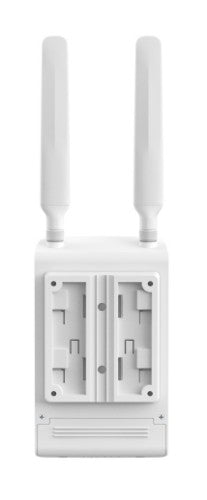

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.

Specifications

Design
LED indicators	Status
Certification	CE, FCC, RoHS
Mounting type	Wall mounting
Product colour	White
Features
Antenna type	External
Short Message Service (SMS)	Yes
Antenna gain level (max)	4 dBi
Antennas quantity	2
Performance
Internal memory type	DDR4
Internal memory	512 MB
Flash memory	256 MB
Control display unit	No
Certification	CE, FCC, RoHS
Mounting type	Wall mounting
Product colour	White
Data transmission
Forwarding rate	1453489 Mpps
Protocols
DHCP server	Yes
Network
Networking standards	IEEE 802.3at, IEEE 802.3bt
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4/5 GHz
Wi-Fi	Yes
GSM bands supported	850,900,1800,2100 MHz
Forwarding rate	1453489 Mpps
All services ready time	3.8 s
Mobile network generation	4G
SSL VPN tunnels (max)	50
SSL VPN throughput	0.0866 Gbit/s
PPTP/L2TP VPN tunnels (max)	50
Data network	LTE
Downlink/uplink speed	300/50 Mbit/s
Security
Security algorithms	SSID, WPA2, WPA3
MAC address filtering	Yes
Ports & interfaces
SIM card type	NanoSIM
SIM card slot	Yes
DC-in jack	Yes
Management features
Web-based management	Yes
Power
Power over Ethernet (PoE)	Yes
Power consumption (max)	16.6 W
Weight & dimensions
Width	174 mm
Height	38.7 mm
Depth	100.4 mm
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 90%
Technical details
Antenna type	External
Wi-Fi	Yes
Short Message Service (SMS)	Yes
Antenna gain level (max)	4 dBi
Indication
LED indicators	Status
Memory
Internal memory type	DDR4
Internal memory	512 MB
Flash memory	256 MB
Display
Control display unit	No
Certificates
Certification	CE, FCC, RoHS
Antenna
Antenna type	External
Antenna gain level (max)	4 dBi
Antennas quantity	2
