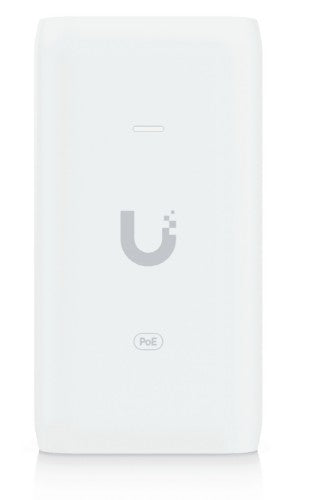

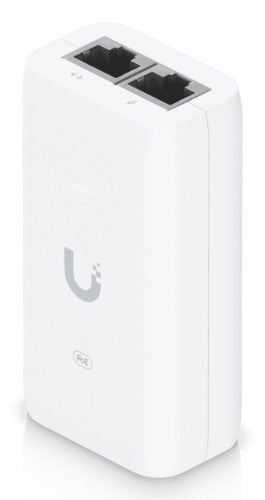

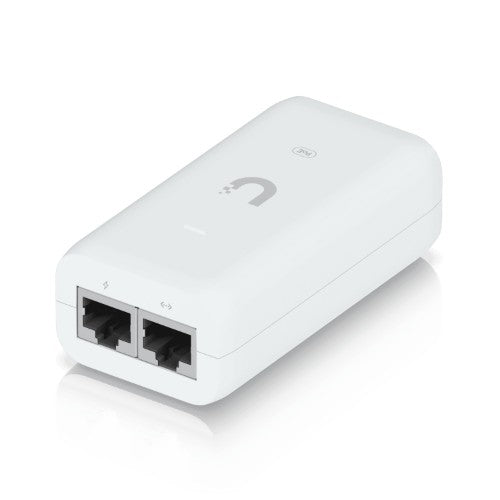

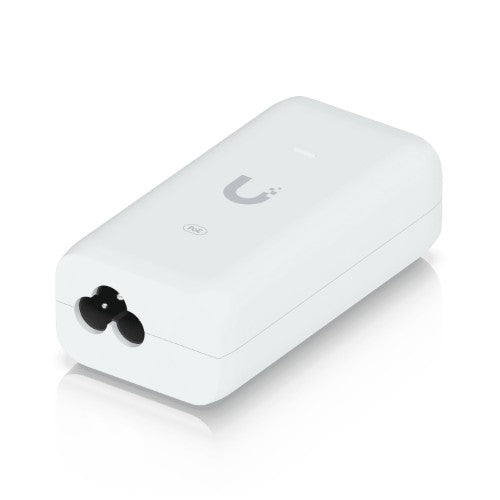

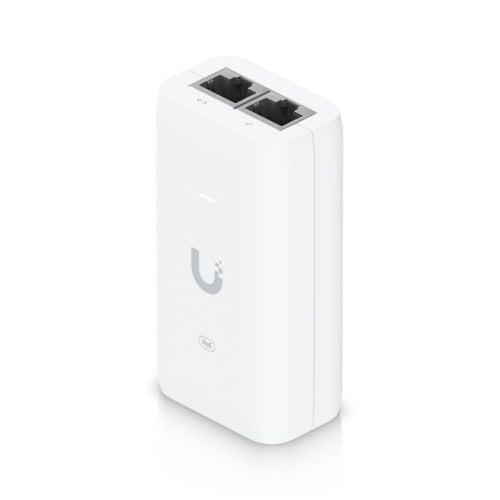

Ubiquiti U-POE PoE adapter Gigabit Ethernet 48 V

RJ45, 200mV p-p, 15W, 500mA, 86 x 46 x 33 mm

Key Features

• Delivers up to 15W of PoE
• Surge, peak pulse, and overcurrent protection

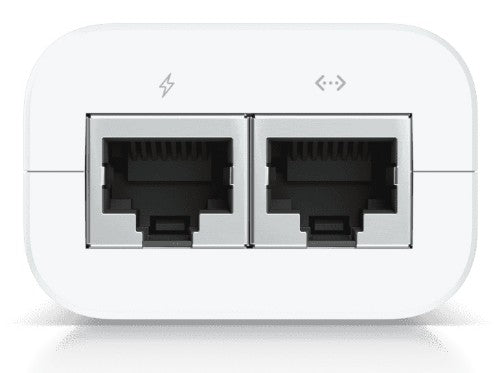

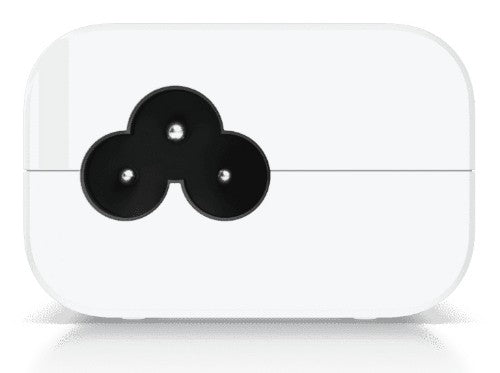

• Contains RJ45 data input, AC cable with earth ground, and PoE output
• LED indicator for status monitoring

Description

An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Specifications

Network
Power over Ethernet (PoE)	Yes
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE) type supported	Active PoE
Power over Ethernet (PoE) voltage	48 V
Features
Easy to install	Yes
Surge protection	Yes
Product colour	White
LED indicators	Status
Ports & interfaces
RJ-45 input ports	2
Power
Output power	15 W
Power over Ethernet (PoE) voltage	48 V
Input current	0.5 A
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Inrush current	100 A
Efficiency	84.25%
Switching frequency	65 kHz
Line regulation	3%
Load regulation	5%
Response time	1 ns
Certificates
Compliance certificates	CE, UL
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	-30 - 70 °F
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Weight	100 g
Width	86 mm
Depth	46 mm
Height	33 mm
Technical details
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	-30 - 70 °F
Input current	0.5 A
Ethernet interface type	Gigabit Ethernet
Compliance certificates	CE, UL
Indication
LED indicators	Status
