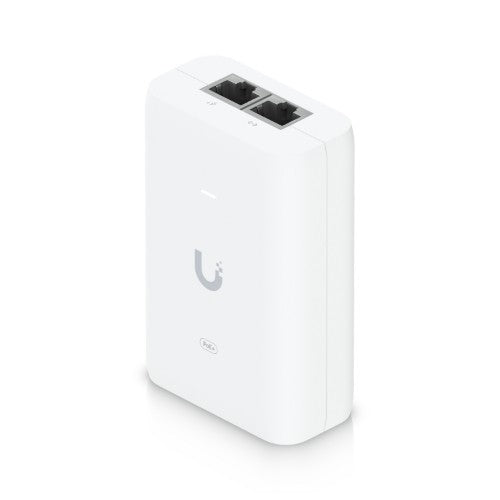

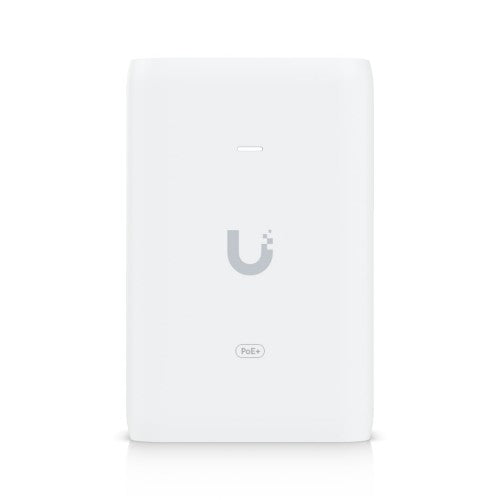

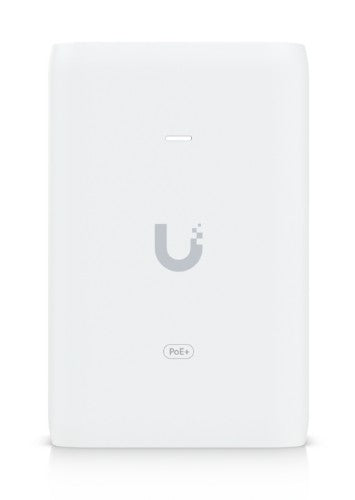

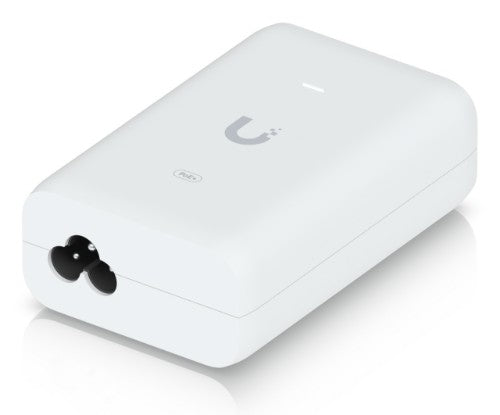

Ubiquiti U-PoE+ Gigabit Ethernet 48 V

PoE+ Adapter (30W), 48V DC 0.65A, 100-240V AC, 50/60Hz, 93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Key Features

• Delivers up to 30W of PoE+
• Surge, peak pulse, and overcurrent protection

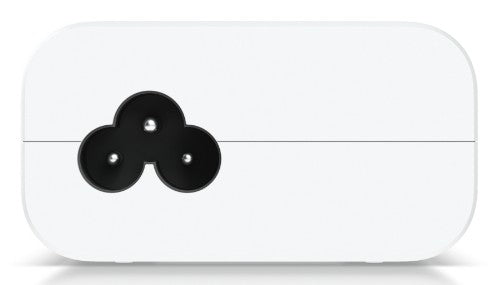

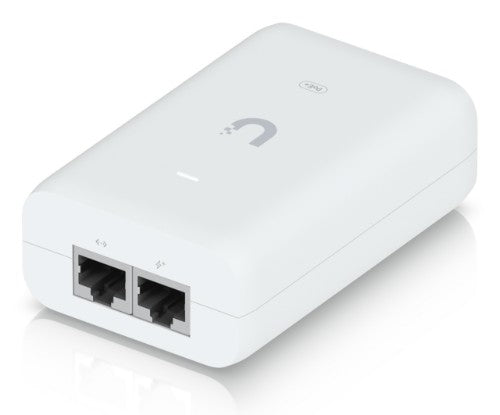

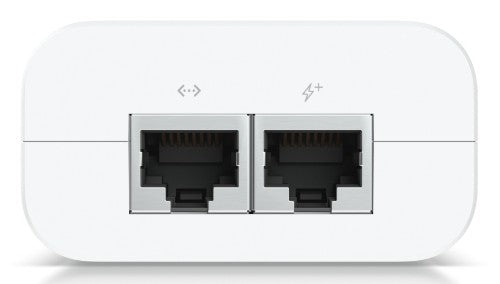

• Contains RJ45 data input, AC cable with earth ground, and PoE+ output
• LED indicator for status monitoring

Description

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Specifications

Network
Networking standards	IEEE 802.3at
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE) voltage	48 V
Features
Surge protection	Yes
Product colour	White
Power protection features	Over current, Peak pulse, Surge protection
LED indicators	Status
Networking standards	IEEE 802.3at
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Output power	30 W
Output current	0.65 A
Power over Ethernet (PoE) voltage	48 V
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.75 A
Certificates
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Weight	156 g
Width	62 mm
Depth	35 mm
Height	93 mm
Packaging content
Number of products included	1 pc(s)
Technical details
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	32 - 104 °F
Number of products included	1 pc(s)
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.75 A
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
Indication
LED indicators	Status
