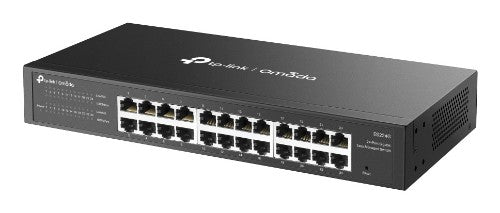

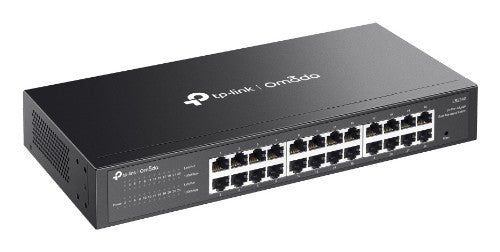

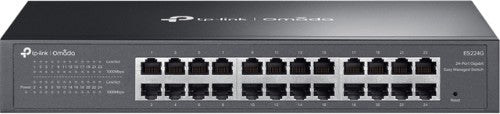

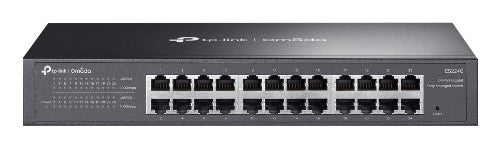

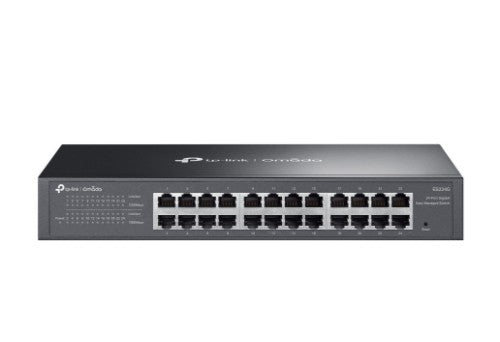

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

ES224G Omada 24-Port Gigabit Easy Managed Switch

Key Features

• 24× 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
• Automatic Loop Prevention and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/rack mounting design

Description

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Unified static configuration	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
Network
Number of VLANs	32
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Fast leave	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	15000
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	4 MB
Forwarding rate	35.7 Mpps
Number of VLANs	32
Security
IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Product colour	Black
Performance
Firmware upgradeable	Yes
Fanless	Yes
Packet buffer memory	4 MB
Auto-negotiation	Yes
Power
Power supply included	Yes
Surge protection voltage	6 kV
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Surge protection	Yes
Power source	AC
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Virtual LAN features
Number of VLANs	32
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN
Weight & dimensions
Width	294 mm
Depth	140 mm
Height	44 mm
Packaging content
Rack mount kit	No
User guide	Yes
Cables included	AC
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Packaging data
Rack mount kit	No
User guide	Yes
Cables included	AC
