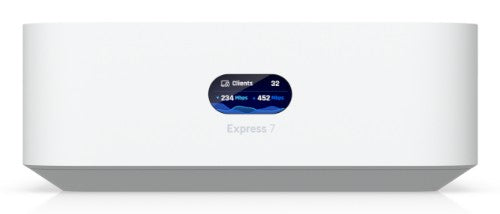

Ubiquiti UniFi Express 7 gateway/controller 10, 100, 1000, 2500, 10000 Mbit/s

Quad-core ARM Cortex-A53 at 1.5 GHz, 3 GB memory, 10G SFP+, 10 GbE RJ45, 2.5 GbE RJ45, WiFi 7, Bluetooth, 22W, 117 x 117 x 42.5 mm

Description

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.

Specifications

Design
LED indicators	Status
Product colour	White
Enclosure material	Polycarbonate (PC)
Features
Antenna type	Internal
Antenna gain level (max)	6 dBi
Antennas quantity	4
Built-in processor	Yes
Processor frequency	1500 MHz
Number of processors installed	1
Performance
Built-in processor	Yes
Processor frequency	1500 MHz
Number of processors installed	1
Internal memory	3000 MB
Display type	LCM
Control display unit	Yes
Processor model	Cortex-A53
Processor manufacturer	ARM
Processor family	ARM Cortex
Product colour	White
Enclosure material	Polycarbonate (PC)
Protocols
DHCP server	Yes
Routing protocols	OSPF
Network
Networking standards	IEEE 802.1Q
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Frequency band	2.4, 5, 6 GHz
WLAN data transfer rates supported	1,2,5.5,6,6.5,9,11,12,18,24,36,48,54,300 Mbit/s
Wireless connection	Yes
Wi-Fi	Yes
Data transfer rate	5.7 Gbit/s
Load balancing	Yes
Bluetooth	Yes
Security
VLAN support	Yes
Security algorithms	802.1x RADIUS, IPSec, PPSK, TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Firewall security	Yes

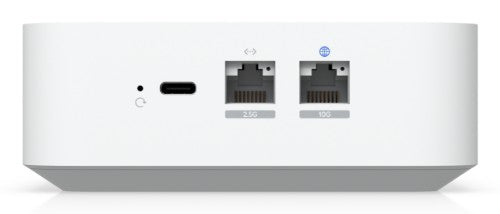

Ports & interfaces
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	2
Management features
Reset button	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Power
Input voltage	100 - 240 V
Input current	5 A
Power consumption (max)	22 W
Electromagnetic (EMP) protection	Yes
Electromagnetic (EMP) protection (air)	8 kV
Electromagnetic (EMP) protection (contact)	4 kV
Weight & dimensions
Weight	422 g
Width	117 mm
Height	42.5 mm
Depth	117 mm

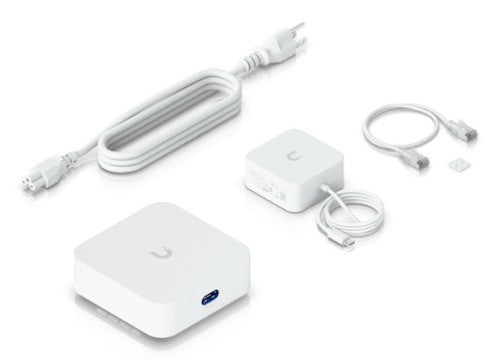

Packaging content
Cables included	LAN (RJ-45), Power
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Built-in processor	Yes
Antenna type	Internal
WLAN data transfer rates supported	1,2,5.5,6,6.5,9,11,12,18,24,36,48,54,300 Mbit/s
Wireless connection	Yes
Wi-Fi	Yes
Processor frequency	1500 MHz
Number of processors installed	1
Antenna gain level (max)	6 dBi
AC adapter included	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators	Status
Memory
Internal memory	3000 MB
Display
Display type	LCM
Display diagonal	2.44 cm (0.96")
Control display unit	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Antenna
Antenna type	Internal
Antenna gain level (max)	6 dBi
Antennas quantity	4
