Ubiquiti UXG-Fiber (30W) gateway/controller 1000, 2500, 10000 Mbit/s

Managed, 4x 2.5 GbE LAN, PoE+, 10G SFP+ WAN, 10 GbE RJ45 WAN, 10G SFP+ LAN, Quad-core ARM Cortex-A73 at 2.2 GHz, 2 GB, Polycarbonate, white, 212.8 x 127.6 x 30 mm

Key Features

• Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
• 5 Gbps routing with IDS/IPS
• (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
• (1) 10G SFP+ LAN port
• Integrated 4-port switch with (1) PoE+ port

Description

Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.

Specifications

Design
LED indicators	Activity, LAN, Link, System
Product colour	White
Enclosure material	Polycarbonate (PC)
Performance
Built-in processor	Yes
Processor frequency	2200 MHz
Number of processors installed	1
Internal memory	2000 MB
Control display unit	No
Processor manufacturer	ARM
Processor family	ARM Cortex
Product colour	White
Enclosure material	Polycarbonate (PC)
Protocols
Routing protocols	OSPF
Network
Ethernet LAN data rates	1000,2500,10000 Mbit/s
Load balancing	Yes
Bluetooth	Yes
Security
VLAN support	Yes
Security algorithms	IPSec, TLS
Firewall security	Yes

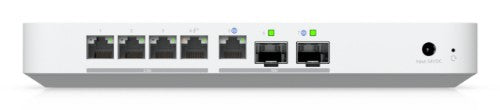

Ports & interfaces
WAN connection	Ethernet (RJ-45), SFP
Ethernet LAN (RJ-45) ports	5
DC-in jack	Yes
SFP+ ports quantity	2
Management features
Reset button	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Power
Power over Ethernet (PoE)	Yes
Input voltage	100 - 240 V
Input current	1.1 A
DC input voltage	54 V
Power consumption (max)	25 W
Power over Ethernet (PoE) type supported	PoE+
Electromagnetic (EMP) protection	Yes
Electromagnetic (EMP) protection (air)	8 kV
Electromagnetic (EMP) protection (contact)	4 kV
Weight & dimensions
Weight	605 g
Width	212.8 mm
Height	30 mm
Depth	127.6 mm

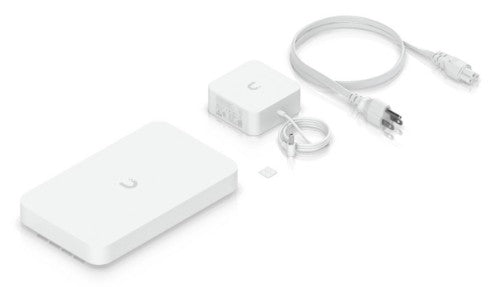

Packaging content
Cables included	Power
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Sustainability
Sustainability compliance	Yes
Technical details
Built-in processor	Yes
Processor frequency	2200 MHz
Number of processors installed	1
AC adapter included	Yes
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators	Activity, LAN, Link, System
Memory
Internal memory	2000 MB
Display
Control display unit	No
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Features
Built-in processor	Yes
Processor frequency	2200 MHz
Number of processors installed	1
