Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet (PoE)
Regular price
$341.33 AUD
Regular price
Sale price
$341.33 AUD
Unit price
per
Use the contact form below to check availability.
Wall-mounted, WiFi 7, 115 m2 (1,250 ft2), 3x 2.5 GbE RJ45 ports, PoE, 13W, Polycarbonate, aluminum alloy, 137 x 98.7 x 30.2 mm
Description
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4300 Mbit/s |
| Ethernet LAN data rates | 2500 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Number of users | 200 user(s) |
| VLAN support | Yes |
| Reset button | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4300 Mbit/s |
| Ethernet LAN data rates | 2500 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Number of users | 200 user(s) |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Spatial streams | 4 |
| Coverage area | 115 m² |
| Wireless meshing | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 24 dBmW |
| Security | |
| Security algorithms | PPSK |
| Management features | |
| Access point management | Wi-Fi schedule |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Power | |
| Power consumption (max) | 13 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 42.5 - 57 V |
| Design | |
| Placement | Wall |
| Housing material | Aluminium, Polycarbonate (PC) |
| Reset button | Yes |
| LED indicators | Status |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 8 dBi |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 98.7 mm |
| Depth | 30.2 mm |
| Height | 137 mm |
| Weight | 400 g |
| Packaging data | |

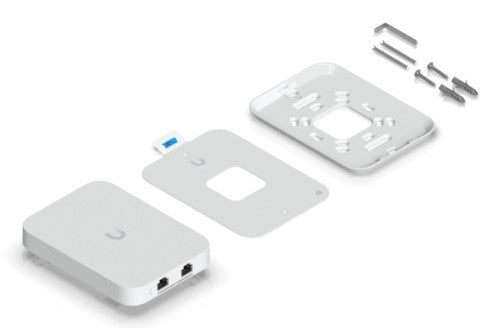

| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 40 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
