Ubiquiti U7 Lite 4300 Mbit/s White Power over Ethernet (PoE)

WiFi 7 (802.11n/ac/ax/be), 5 GHz, 115 m2 (1,250 ft2), 2.5 GbE RJ45, PoE+, 200+ clients, 171.5 x 33 mm, UV-stabilized polycarbonate, white

Description

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	4300 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
Frequency band	2.4 - 5 GHz
Number of users	200 user(s)
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	4300 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
Frequency band	2.4 - 5 GHz
Number of users	200 user(s)
VLAN support	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Fast roaming	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4300 Mbit/s
Fit AP mode features	Hotspot 2.0
Spatial streams	4
Coverage area	115 m²
Wireless meshing	Yes
Maximum Tx power (2.4 GHz)	23 dBmW
Maximum Tx power (5 GHz)	24 dBmW
Security
Security algorithms	PPSK
Management features
Access point management	Wi-Fi schedule
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	13 W
Power over Ethernet (PoE)	Yes
DC voltage range	44 - 57 V
Design
Placement	Ceiling, Wall
Housing material	Polycarbonate (PC)
Reset button	Yes
LED indicators	System
Product colour	White
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5 dBi
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Software
Fast roaming	Yes
Weight & dimensions
Width	171.5 mm
Depth	33 mm
Height	171.5 mm
Weight	313 g
Packaging data

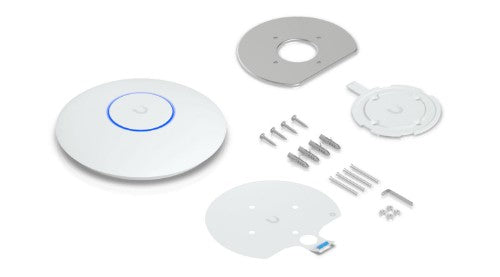

Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 40 °C
Logistics data
Quantity per pack	1 pc(s)
